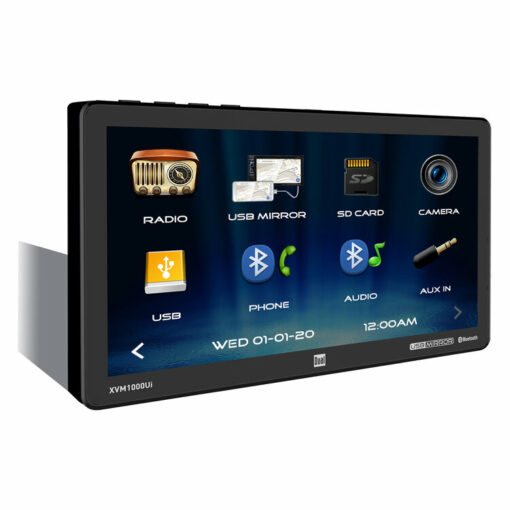

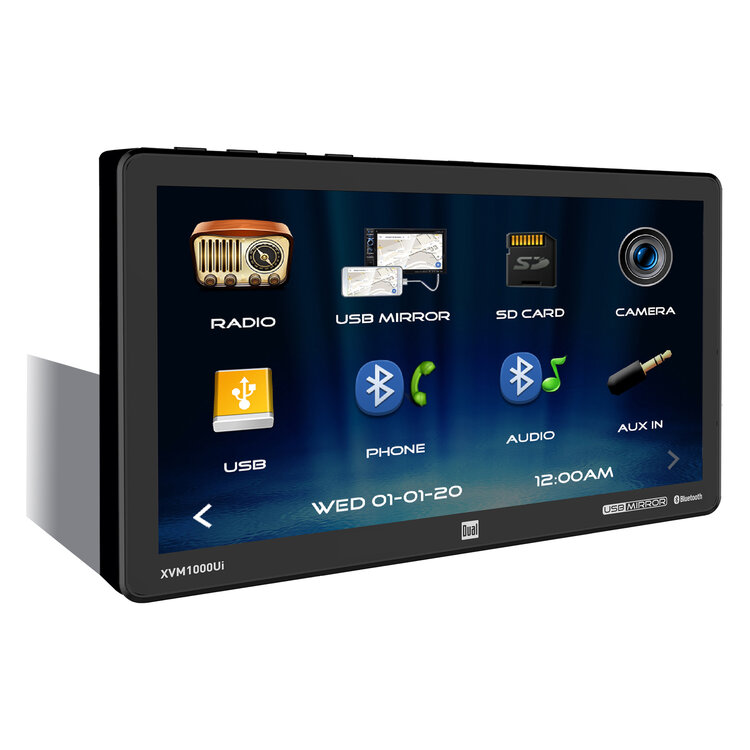

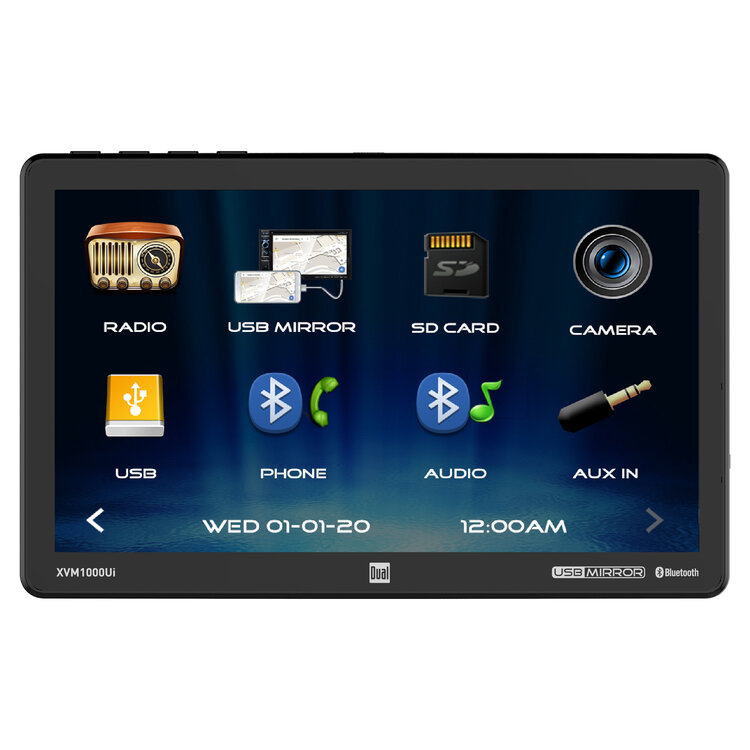

10″ USB Mirroring AV Media Receiver – XVM1000UI

Retail Exclusive:
No Longer Available

SKU: XVM1000UI Categories: ,

Screen Mirroring

This model allows you to mirror the screen of your smartphone onto the receiver’s screen via USB cable connection. Enjoy high-quality picture and accurate mirroring thanks to the built-in digital-to-digital USB converter. *USB connection cable sold separately.

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

Slim Mount Design

This receiver is specially designed with a slim build to fit various dash openings and a shallow 5.1in (130mm) chassis that helps make installation easy and efficient!

iPlug Smart Remote App

Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth.

Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight.

High-Power Sound

50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the 3 pairs of preamp outputs to add amplifiers for more volume in your system.


  • 10.1″ Extra-large capacitive touchscreen LCD (1024p x 600p)
  • Built-in Bluetooth with hands-free calling, and music streaming with ID3 tags and phonebook support (HFP, A2DP, AVRCP, PBAP). Internal microphone.
  • USB Screen Mirroring for smartphones (Apple®/Android™)
  • (Mirroring is enabled only when the vehicle is in park and the parking brake engaged)
  • Easy access voice activation button to activate Siri® or the Google Assistant™ on your phone
  • Programmable on-screen shortcut to smartphone navigation app
  • AM/FM tuner with 30 stations presets (18FM/12AM)
  • Dual iPlug Smart Remote app via Bluetooth (Apple/Android)
  • Front panel USB input with 2.1A charging
  • Backup camera RCA input
  • Front panel 3.5mm aux input
  • Front panel microSD card input
  • 1 Pair of RCA preamp outputs (F or R)
  • Media playback: USB, microSD card
  • File formats: MP3/FLAC
  • Digital media unit – will not play CDs/DVDs
  • 7 Band EQ
  • 7 EQ presets (Pop, Rock, Jazz, Classical, Beat, Flat, & User)
  • 200 Watts max power (50W x 4)
  • Steering wheel control (compatible with most popular SWC interfaces)
  • Wireless remote included

Manuals (PDFs)




Smart Remote App

iPlug P1 Smart Remote App
