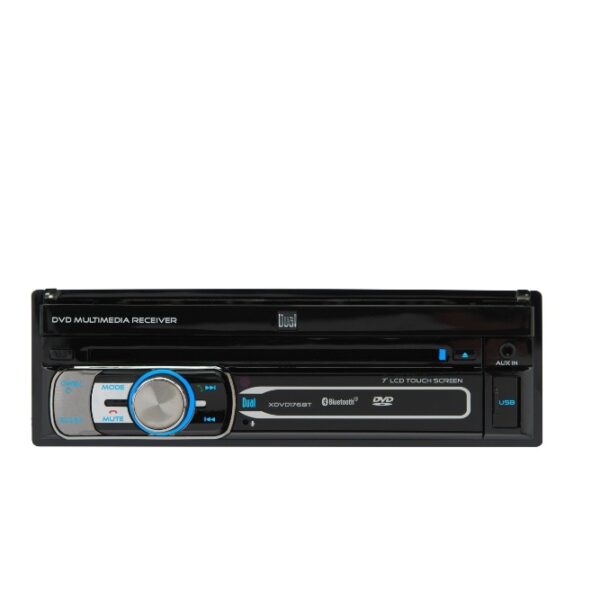

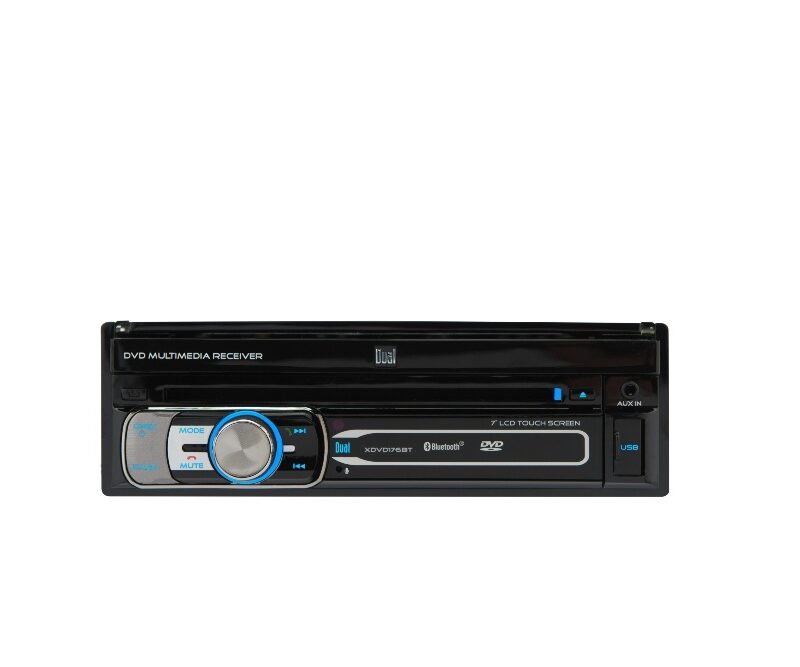

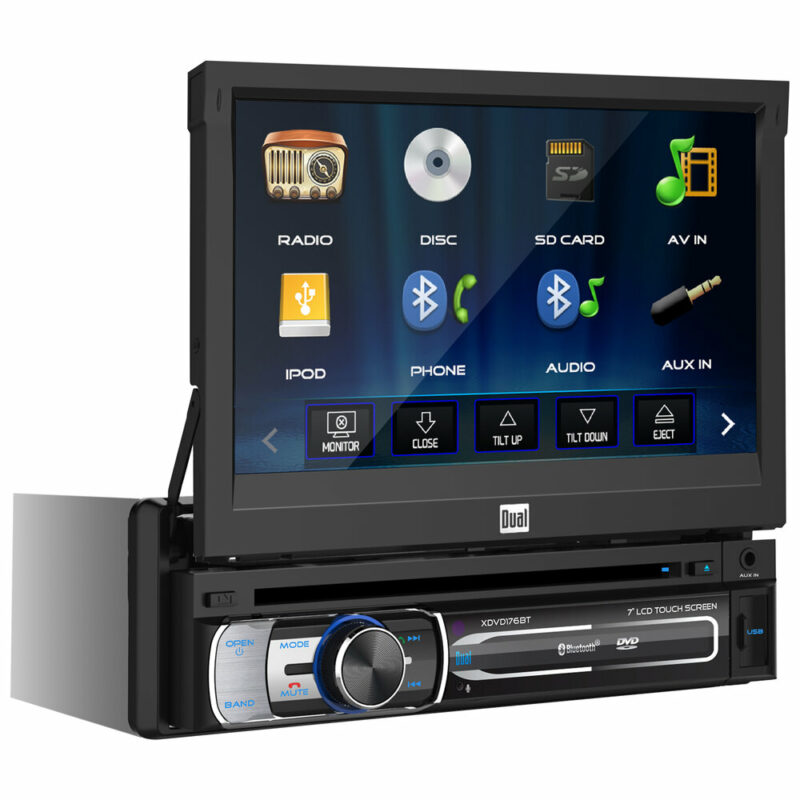

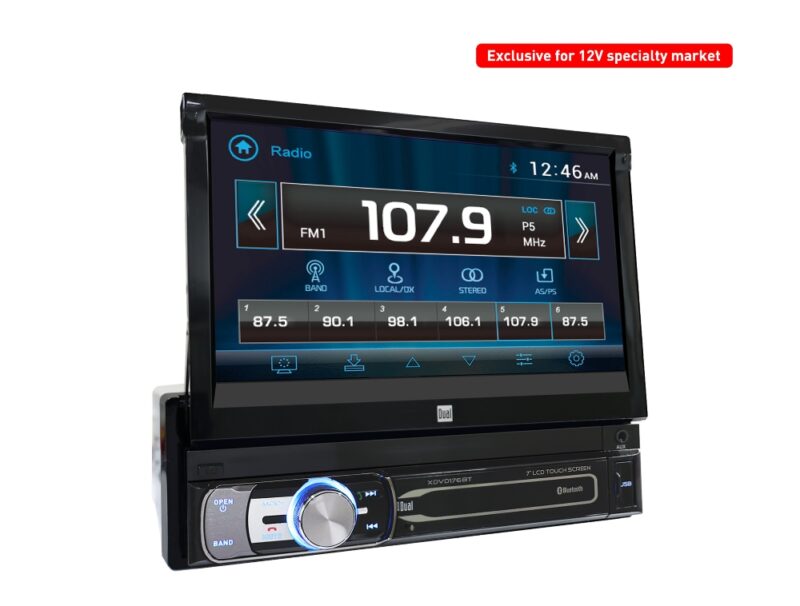

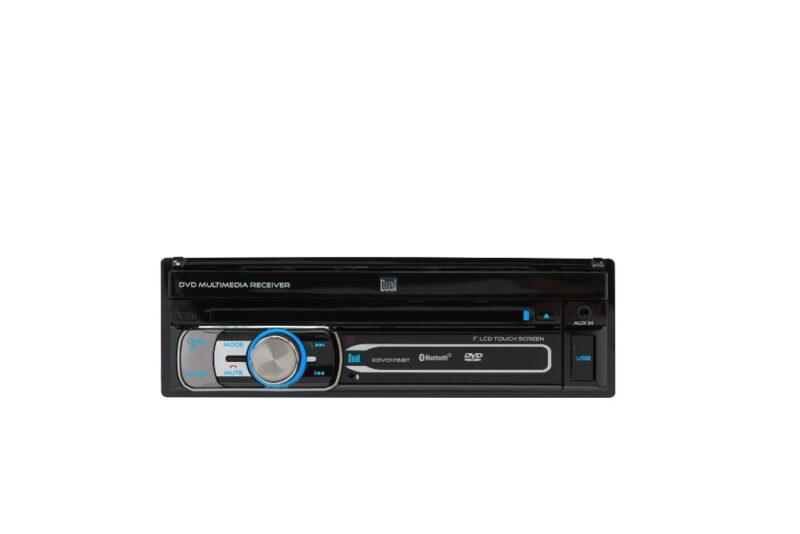

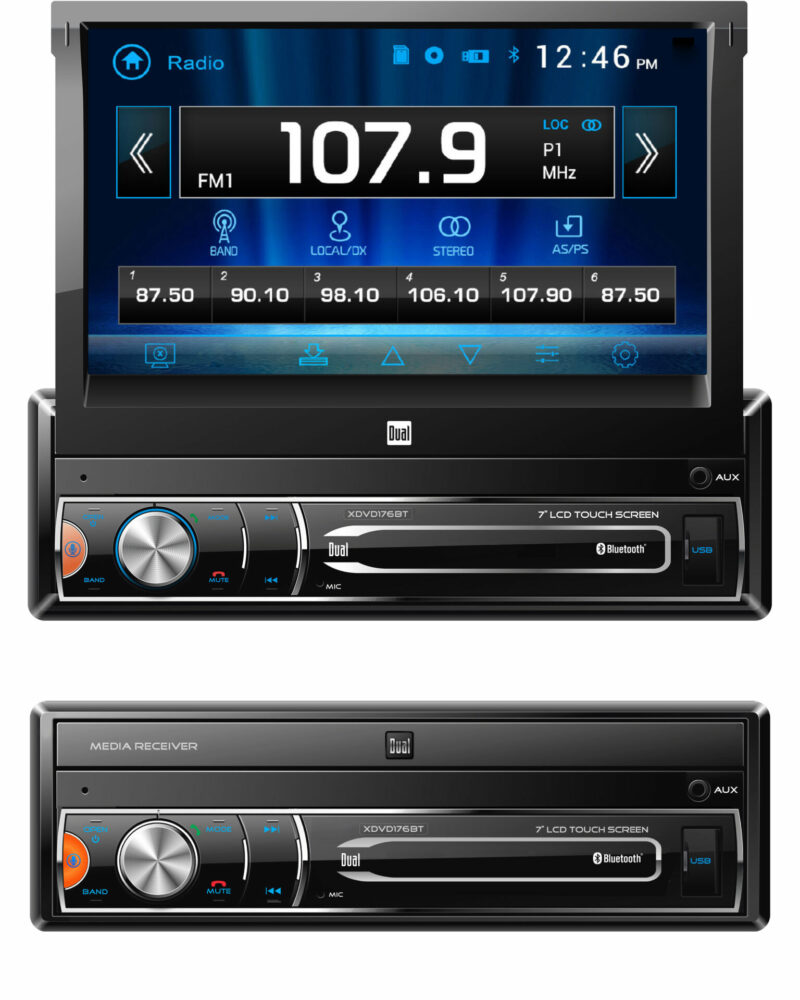

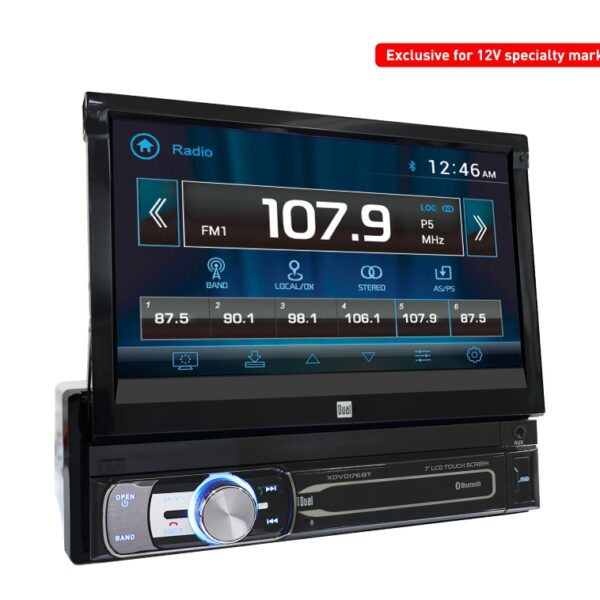

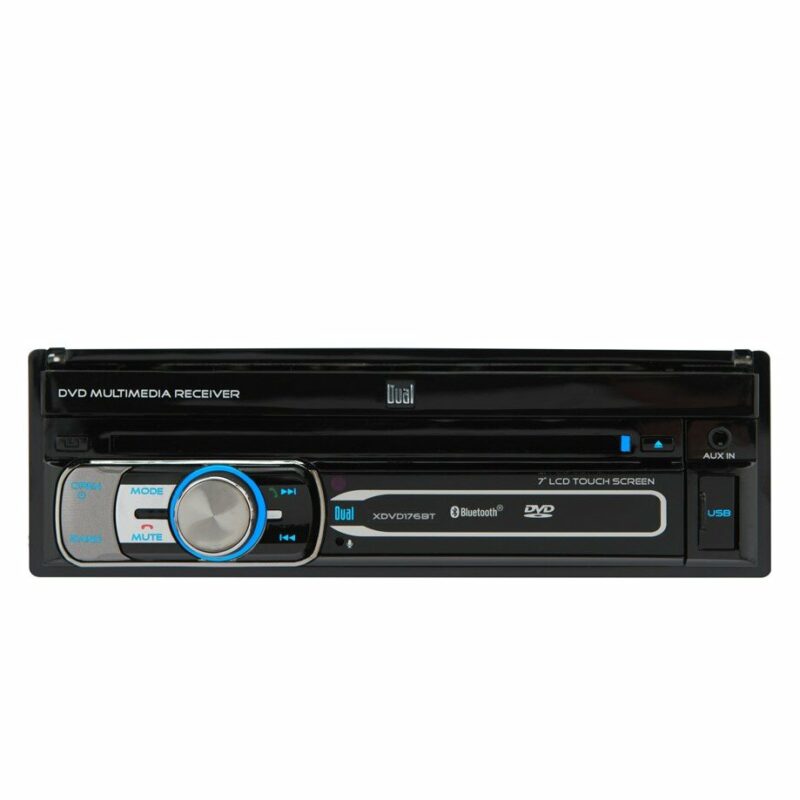

7″ AV DVD Receiver – XDVD176BT



$219.99

Want to take advantage of your DVD and CD collections? This 7″ multimedia receiver features DVD and CD playback, and fits in most 1 DIN dash openings.

SKU: XDVD176BT Categories: ,

Connected Car

Plug in your iPhone® via the front USB input and control it directly from the receiver’s touchscreen. Browse the music library, change songs, adjust volume and more. The receiver will display artist and track information and charge the connected device.

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

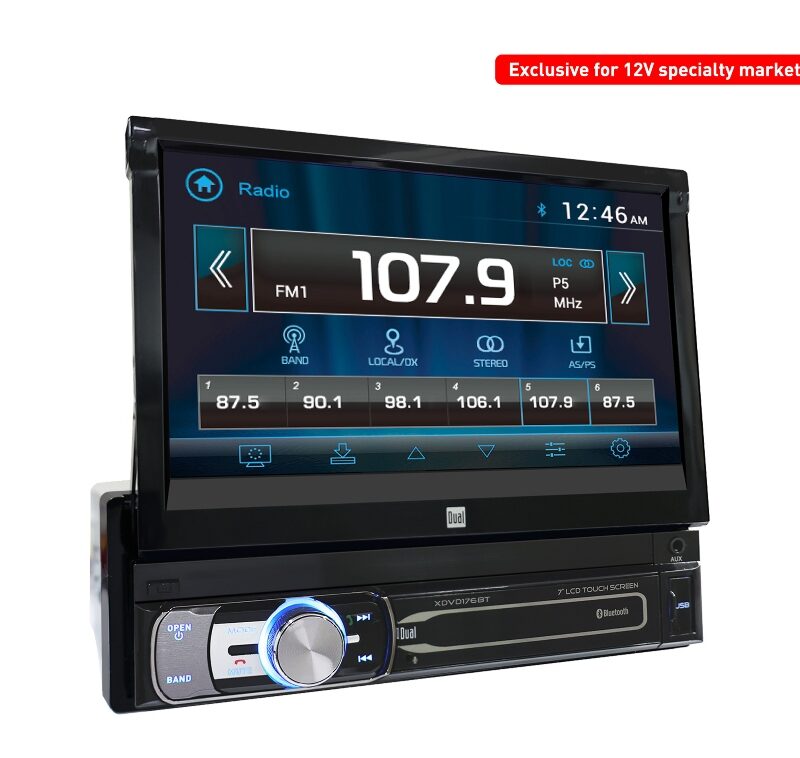

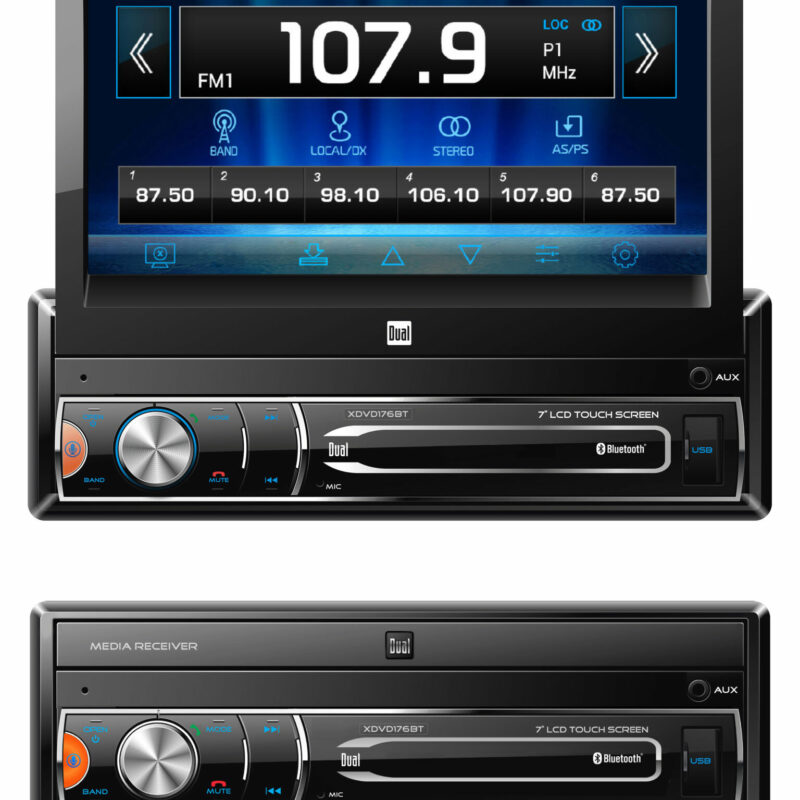

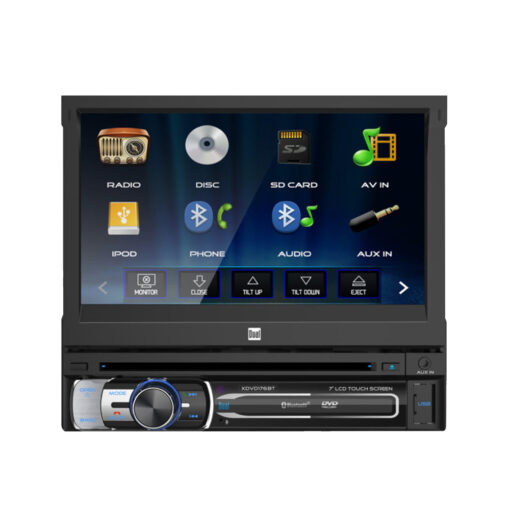

7″ Full Color Touchscreen

Easily manage and control your AM/FM radio, USB drive, AUX input, microSD card, and sources with Bluetooth® technology by using the large colorful touchscreen. Add an optional rear view camera to see behind you when backing up for safer driving.

iPlug Smart Remote App

Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth.

Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight.

High-Power Sound

50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the 3 pairs of preamp outputs to add amplifiers for more volume in your system.

High-Power Sound

50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the 3 pairs of preamp outputs to add amplifiers for more volume in your system.

Playback

CD / DVD / Digital Multimedia

Screen Type

Retractable LCD

Size

Single Din

Phone Connectivity

Made for iPhone, Bluetooth

Inputs

Audio/Video (Rear), 3.5mm (Front), USB (Front), Backup Camera

File Playback

JPEG, MP3

Amplifier Outputs

3 Pair (Front + Rear + Sub)

Steering Wheel Control Compatible

Yes – Adapter Required

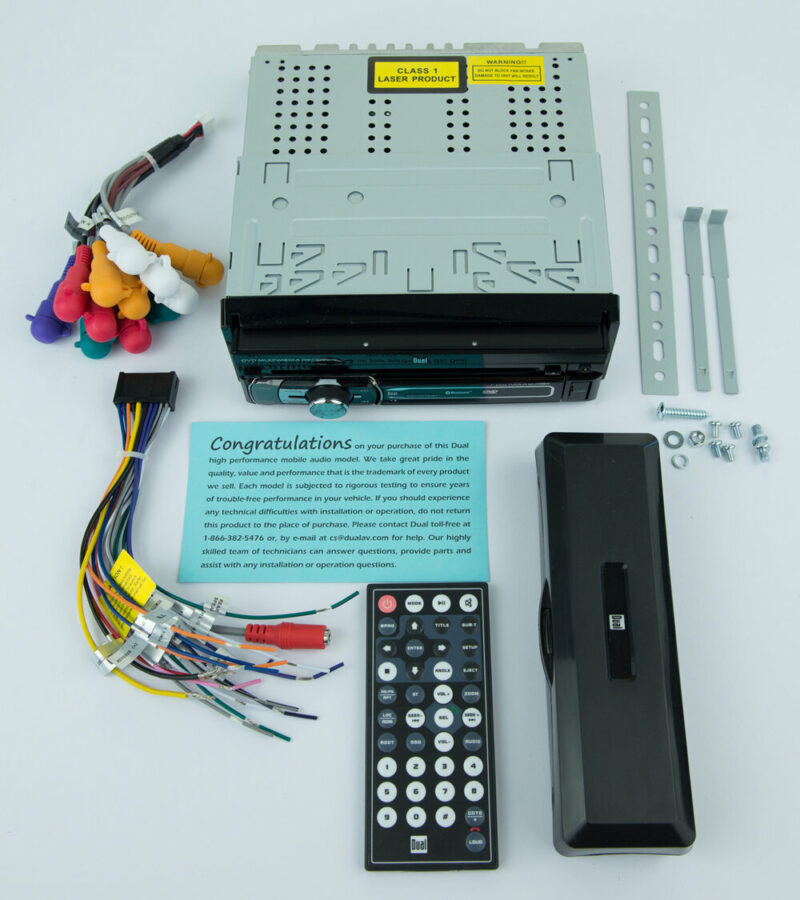

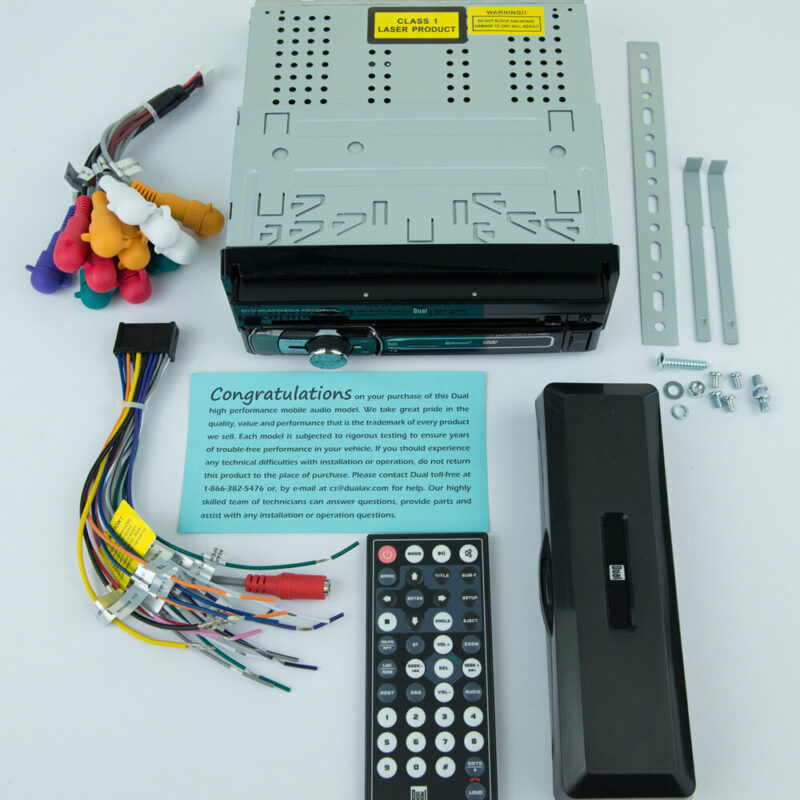

Included Accessories

Wireless Remote

Tech Type

DVD Multimedia

Screen Size

7"

Peak Power Output

200W (50W x 4)

Bluetooth Features

Audio Streaming, Hands-free Calling, Internal Microphone

USB Fast Charge

1A

Card Slot

microSD

RCA Outputs

3 Pair (Front + Rear + Sub), Audio/Video

RCA Preamp Voltage

2V

Front Panel

Retractable

Illumination

Blue

Audio Processing

7 Band EQ, 7 EQ Presets, Surround Sound Effects

Chassis Depth

Full Depth

Wireless Remote

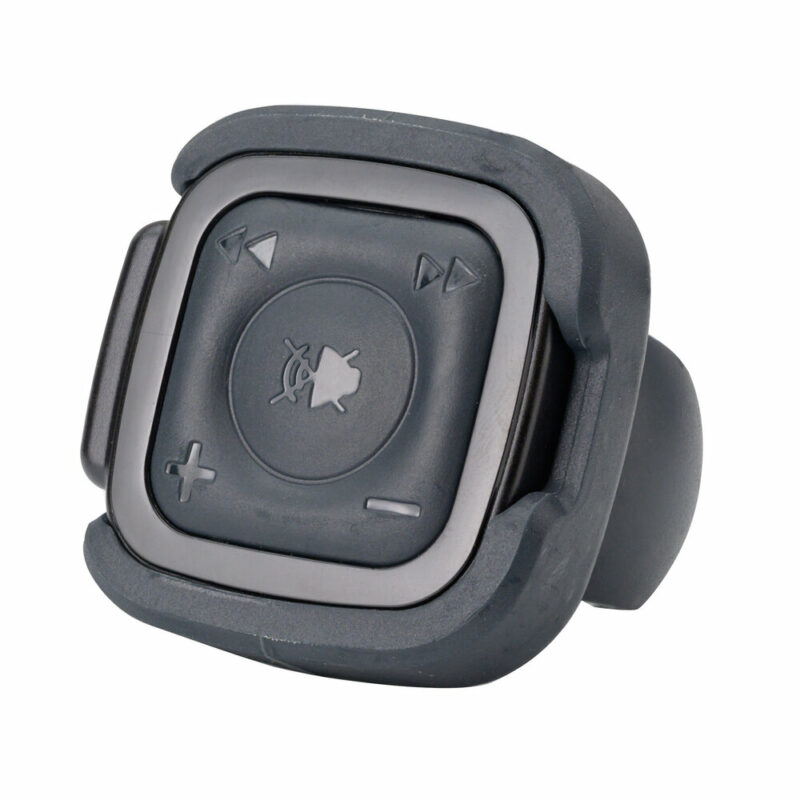

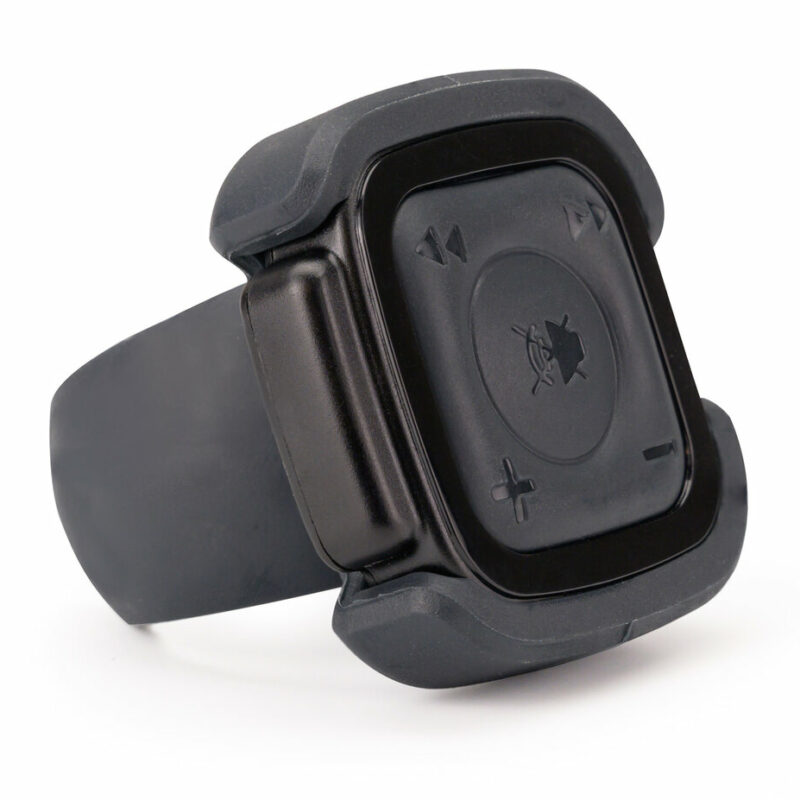

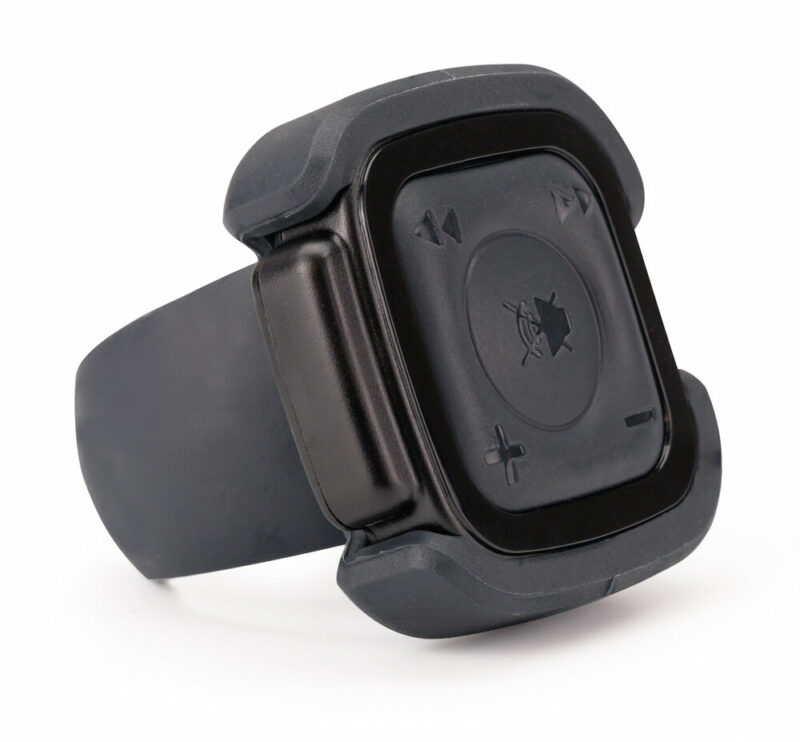

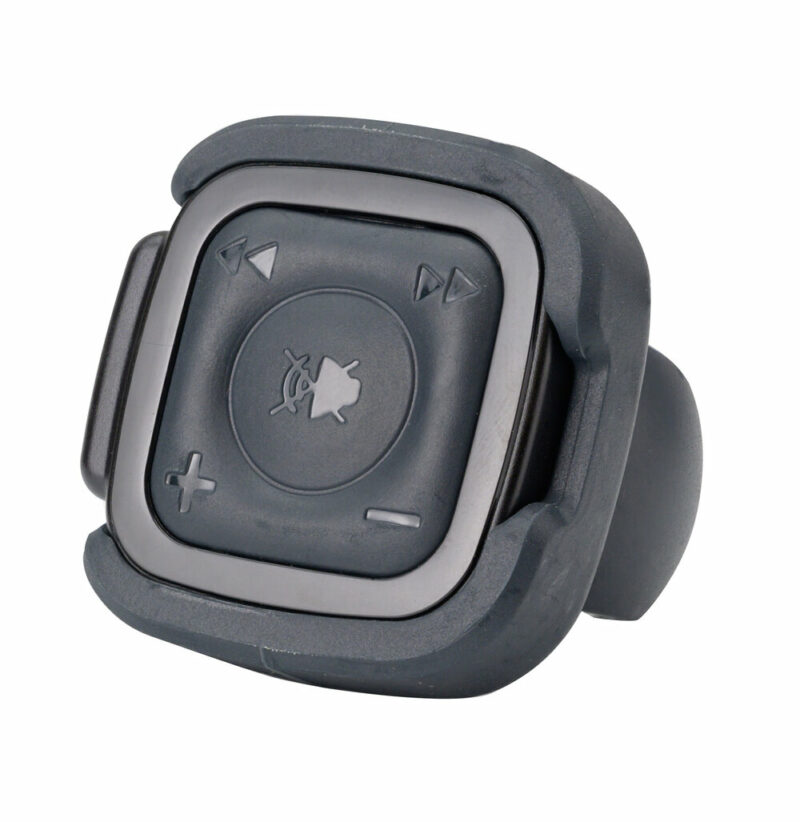

Steering Wheel Remote

AM/FM Receiver

30 Station presets (18FM/12AM)

Manuals (PDFs)

Firmware

FIRMWARE UPDATES AND IMPROVEMENTS:

  • This update allows you to turn off the iPlug App in the settings menu of Bluetooth. (Default is set OFF.)

USE THIS FIRMWARE UPDATE IF YOUR RADIO STARTS WITH THE FOLLOWING SERIAL NUMBER RANGE AND MANUFACTURERS DATE RANGE ONLY.

NSD0086028 – Present
Jan 2019 – Present
Download

NSD0001001 – 0086027
Aug 2017 – Dec 2018
Download

How to update:

  • Unzip the file
    Copy all file into the USB thumb drive.
    Power on the Head unit
    Insert the USB thumb drive in USB port.
    “Are you sure” message will pop-up on screen. Press the green check mark to continue.

Smart Remote App

iPlug Smart Remote App
