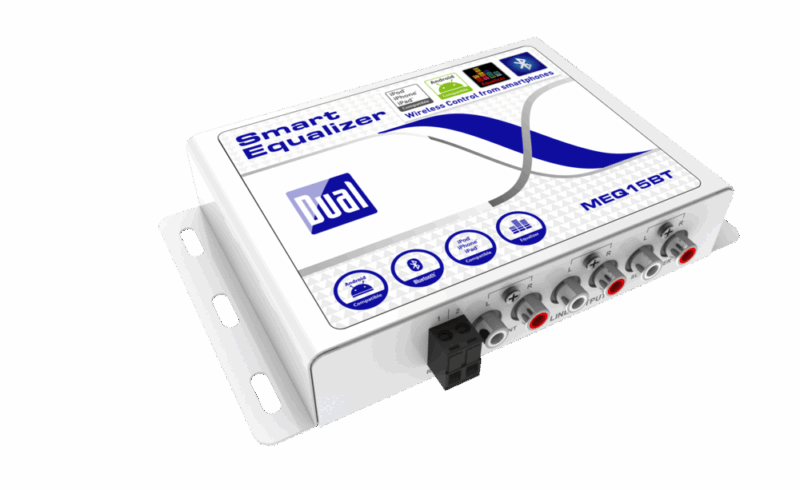

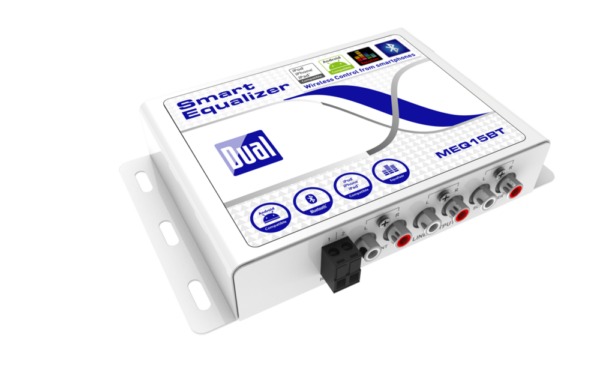

Wireless Smart EQ Processor – MEQ15BT



Retail Exclusive:
No Longer Available

SKU: MEQ15BT Categories: ,

The MEQ15BT Wireless Smart EQ Processor controls balance, fader, subwoofer gain, and a 7-band EQ with 20 presets from a Bluetooth-connected Android or Apple Smartphone (app required, free download). The processor features 3 RCA pre-outs (Front/Rear/Sub), 24-bit DAC, and a 5v line out in Bluetooth streaming mode, and can connect to either an OEM receiver via high-level inputs (speaker wire), or to an aftermarket receiver via RCA inputs.

The Bluetooth audio streaming (A2DP) feature allows the user to stream music from a Smartphone directly to the Smart EQ Processor, bypassing the receiver. This is ideal for remotely controlling audio playback during tailgating and sound competitions, or for boats and ATVs, which may not have a receiver. Each processor also features signal sensing technology for automatic amplifier remote turn-on in Bluetooth streaming mode and for Line-input.

Features

  • Control fader, balance and 7 band EQ with presets from a Bluetooth connected device. App required, free download
  • Works with Apple and Android smartphones and tablet, including iPhone and iPad
  • Bluetooth (A2DP) audio streaming with audio control
  • Volume control using the connected devices controls
  • 3 Pairs of RCA preamp outputs: Front, rear and subwoofer
  • Subwoofer gain control
  • Signal sensing for auto amp remote turn-on
  • Speaker wire and RCA type connections
  • 24-bit DAC Converter
  • Typical Range Up to 10M (30ft.)
  • Power Requirements: 14.4VDC (10-16V)
  • Frequency Response 20Hz – 20kHz
  • THD % <0.05% @ 1kHz, 1V RMS Signal to Noise >80dB @ a-weighted
  • Channel Separation >70dB @ 1kHz
  • Dimensions: 1.2″ x 7″ x 4.1″ (31mm x 177mm x 103mm)
