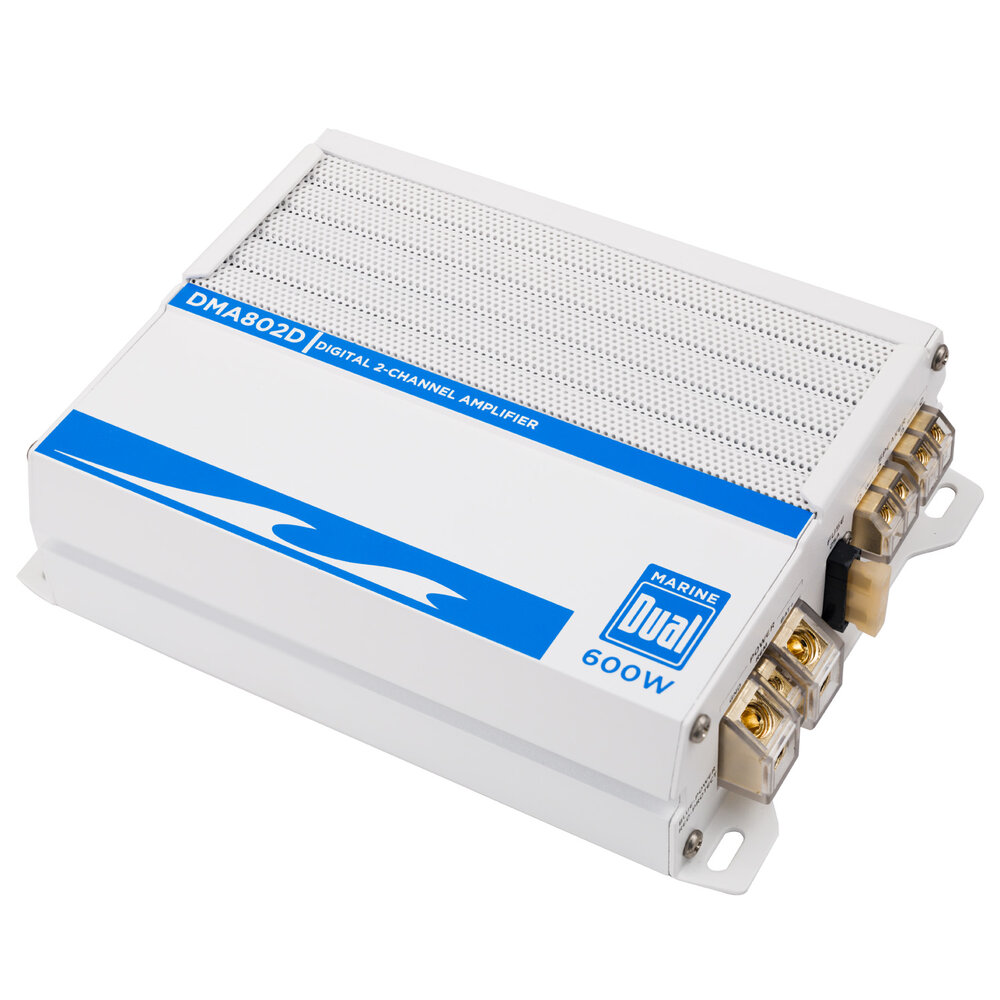

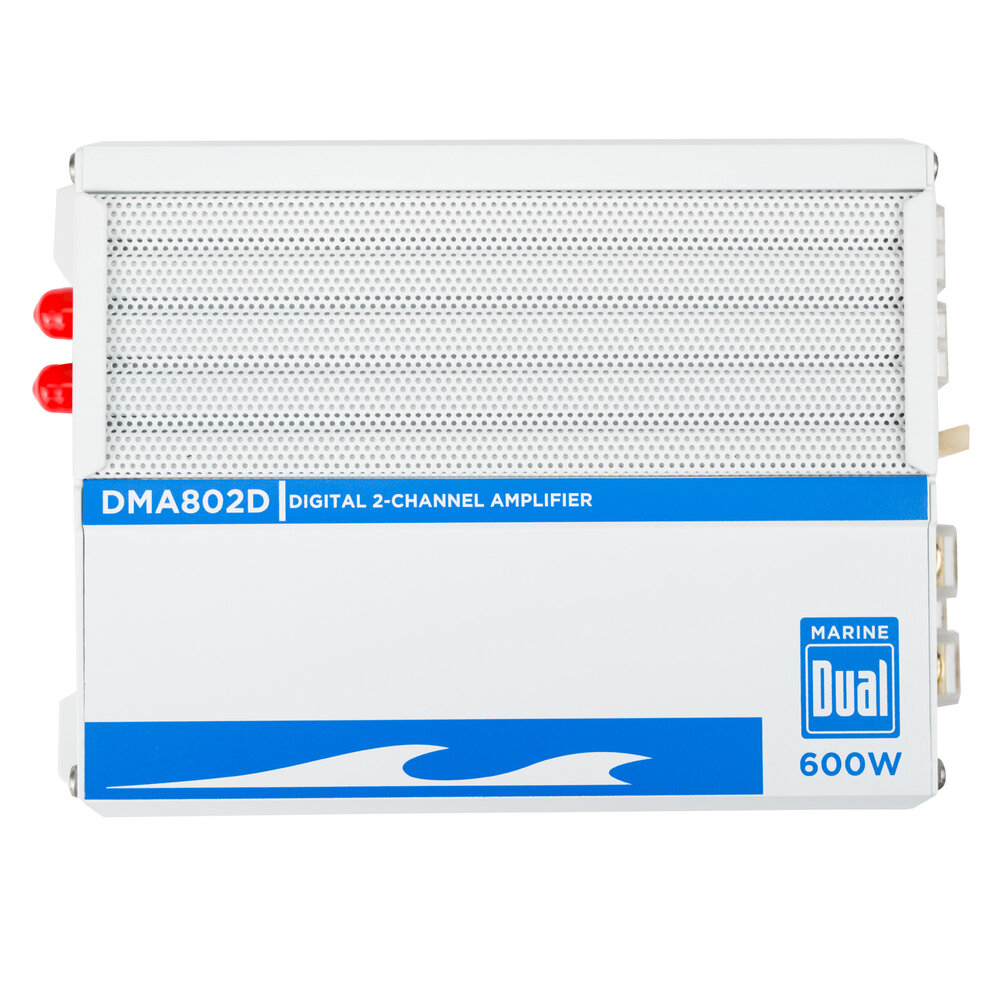

Digital 2 Channel MOSFET Amplifier – DMA802D



$79.99

Out of stock

  • Designed for marine environments
  • 2 channel class-D digital amplifier
  • Features high and low level inputs
  • Provides 600 watts of total dynamic power for powering 2 speakers

Authorized Retailer:

West Marine Logo

Amazon Logo

SKU: DMA802D Categories: ,

icon

Conformal Coating

A transparent protective film is applied to surfaces of all interior printed circuit boards. This additional layer of defense guards against dust, condensation and corrosion – ensuring maximum longevity.

classd
600 Watt Icon
mosfet icon

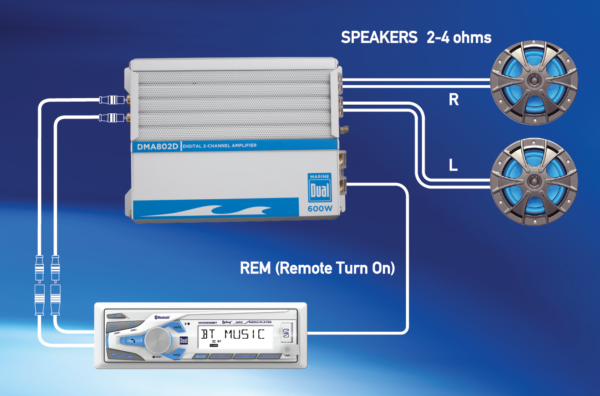

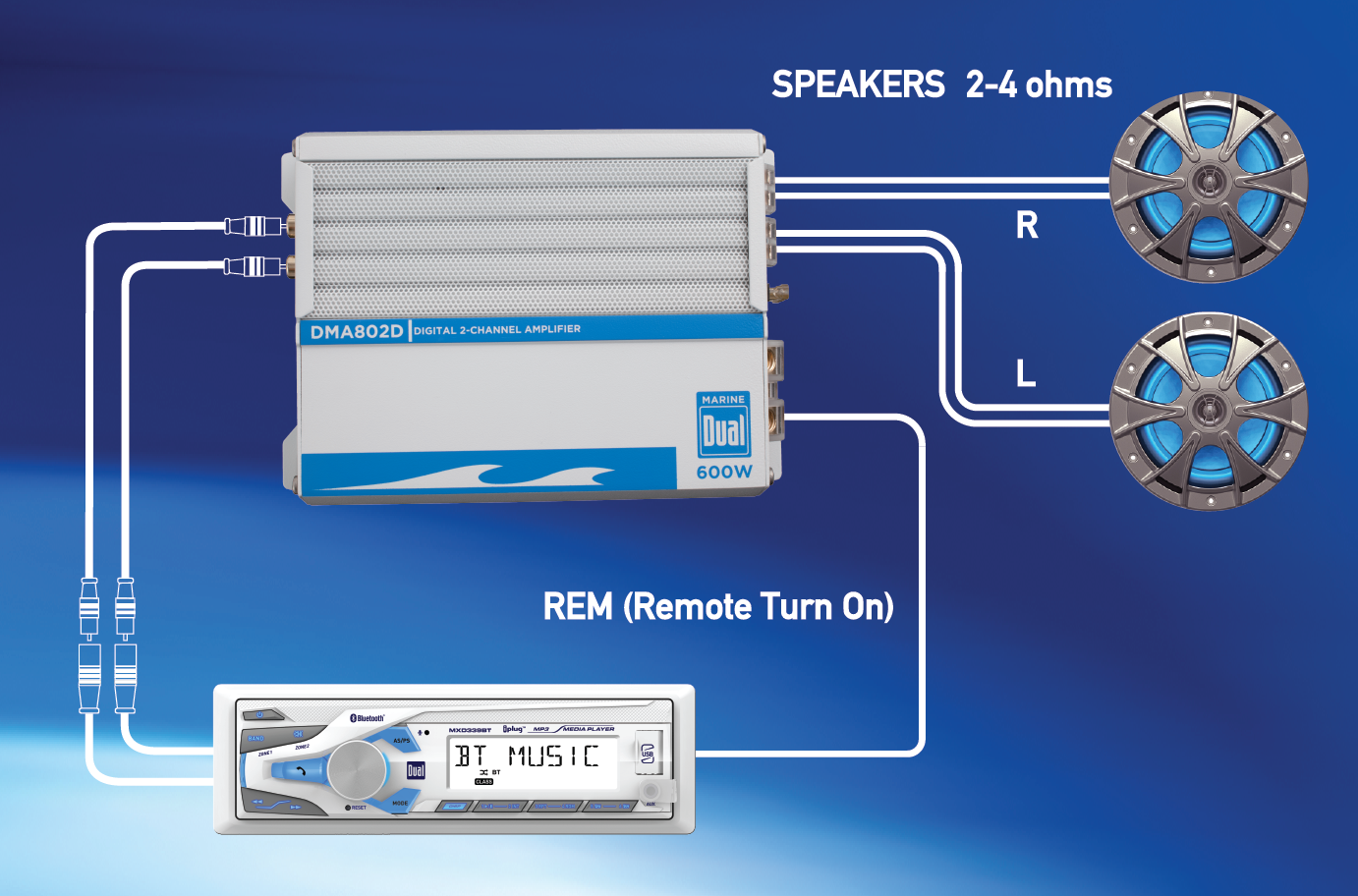

dma802d wiring

Features

Features:

  • Class D design

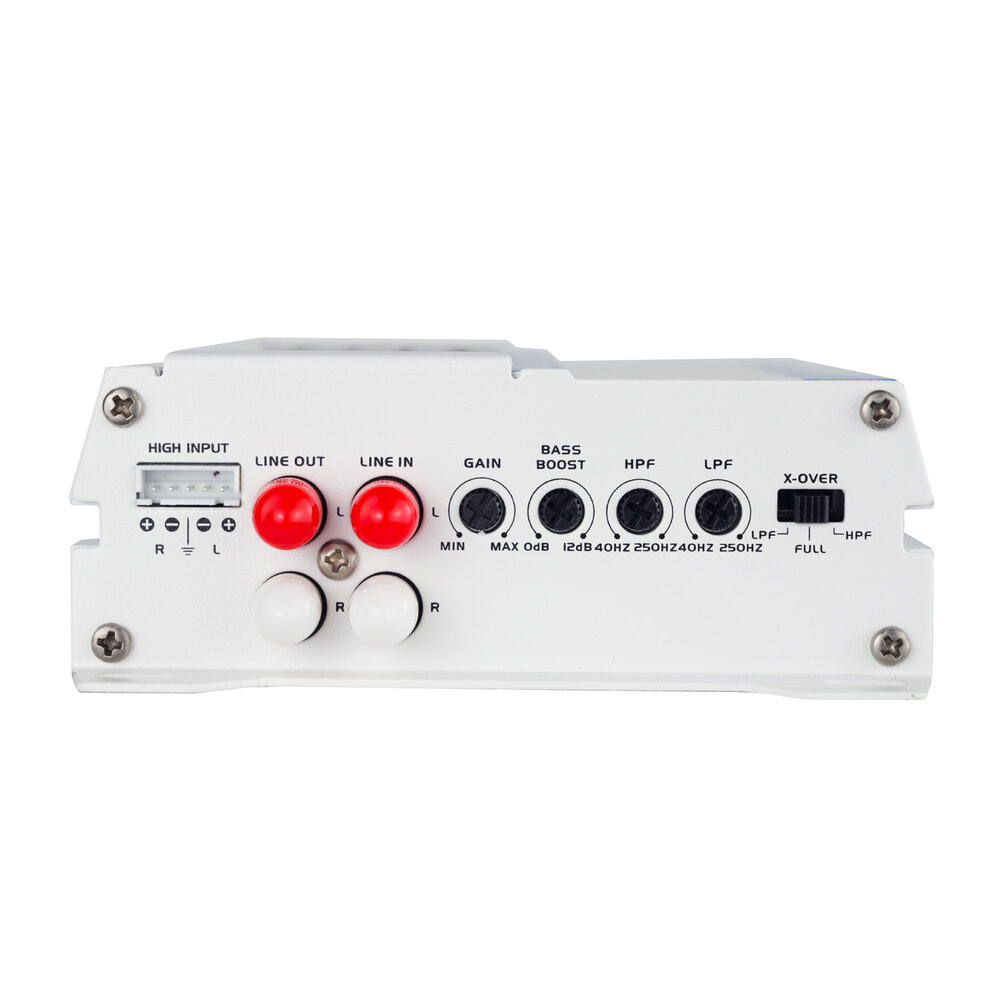

  • High level inputs (speaker wire)
  • Low level inputs (RCA)
  • Variable gain adjustment (200 mV ~ 6 V)
  • Selectable crossover (high pass/low pass/full range)
  • Variable low-pass crossover (40 Hz – 250 Hz)
  • Variable high-pass crossover (40 Hz – 250 Hz)
  • Variable bass boost @ 50 Hz (0-12 dB)
  • PWM MOSFET power supply
  • Bridgeable operation for subwoofer applications
  • 2 Ohm stable stereo operation
  • Stereo/bridged simultaneous operation

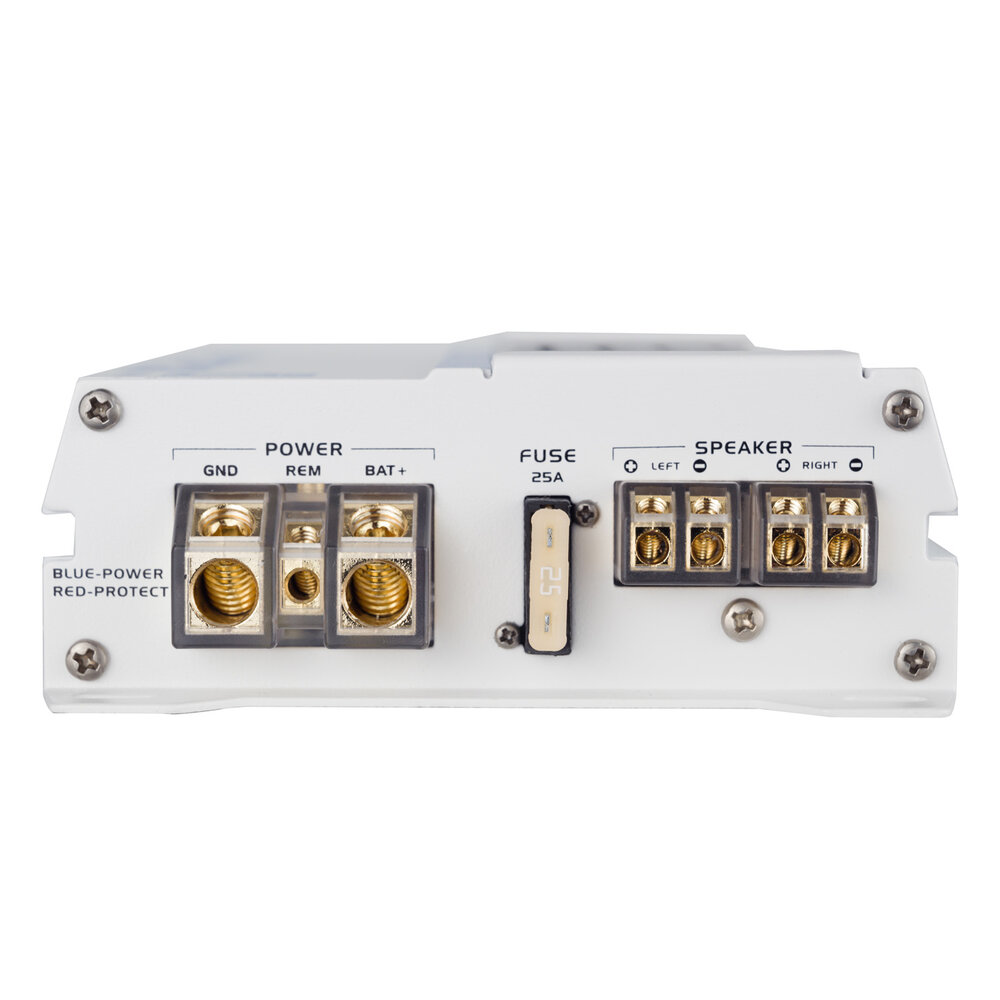

  • Recommended power/ground wire: 8 AWG
  • Recommended speaker wire: 12AWG
  • Fuse size and type: 25 A ATO
  • Amplifier dimensions: 1.77” x 9.35” x 5” (HxWxD)

Specifications:

  • 80 Watts RMS x 2 channels @ 4 ohms
  • 120 Watts RMS x 2 channels @ 2 ohms
  • 240 Watts RMS x 1 channels @ 4 ohms (bridged)
  • Total dynamic power: 600 Watts
  • Signal to noise ratio 75 dBA (reference: 1 Watt into 4 ohms)
  • Frequency response 20 Hz ~ 20 kHz
