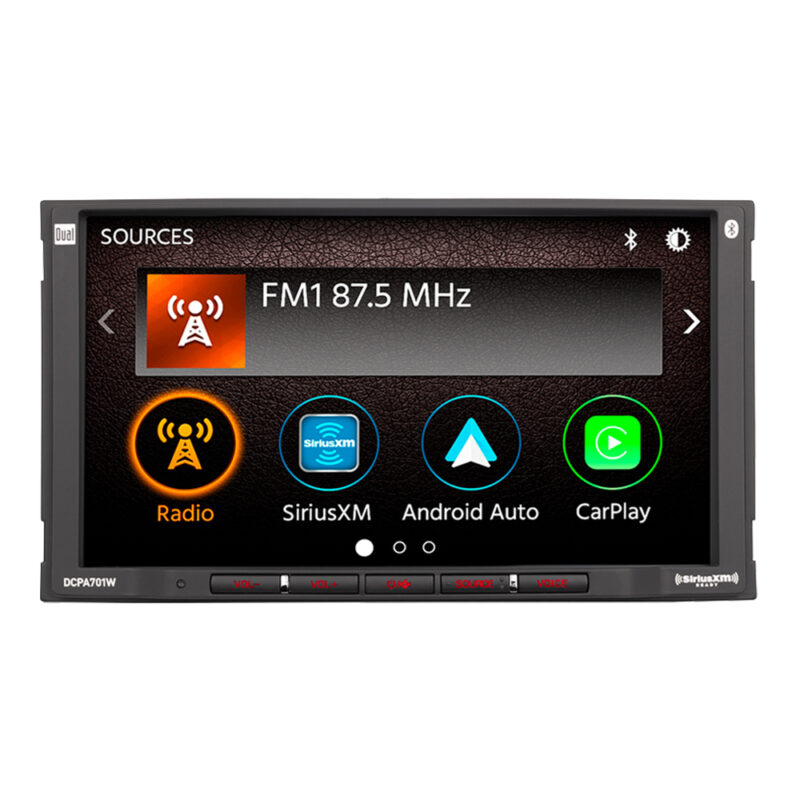

7″ AV Media Receiver – DCPA701W



$429.99

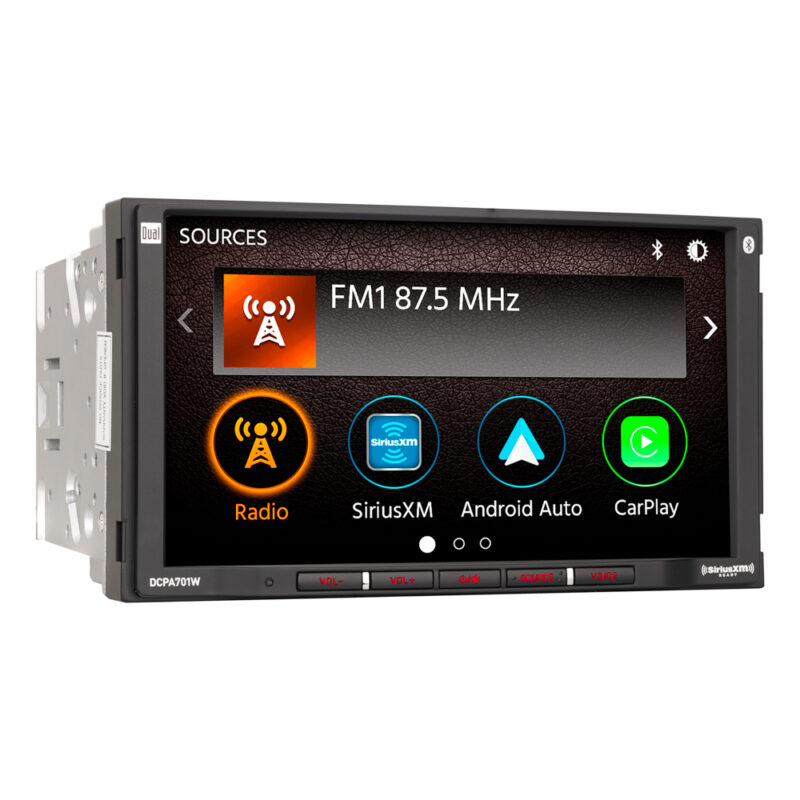

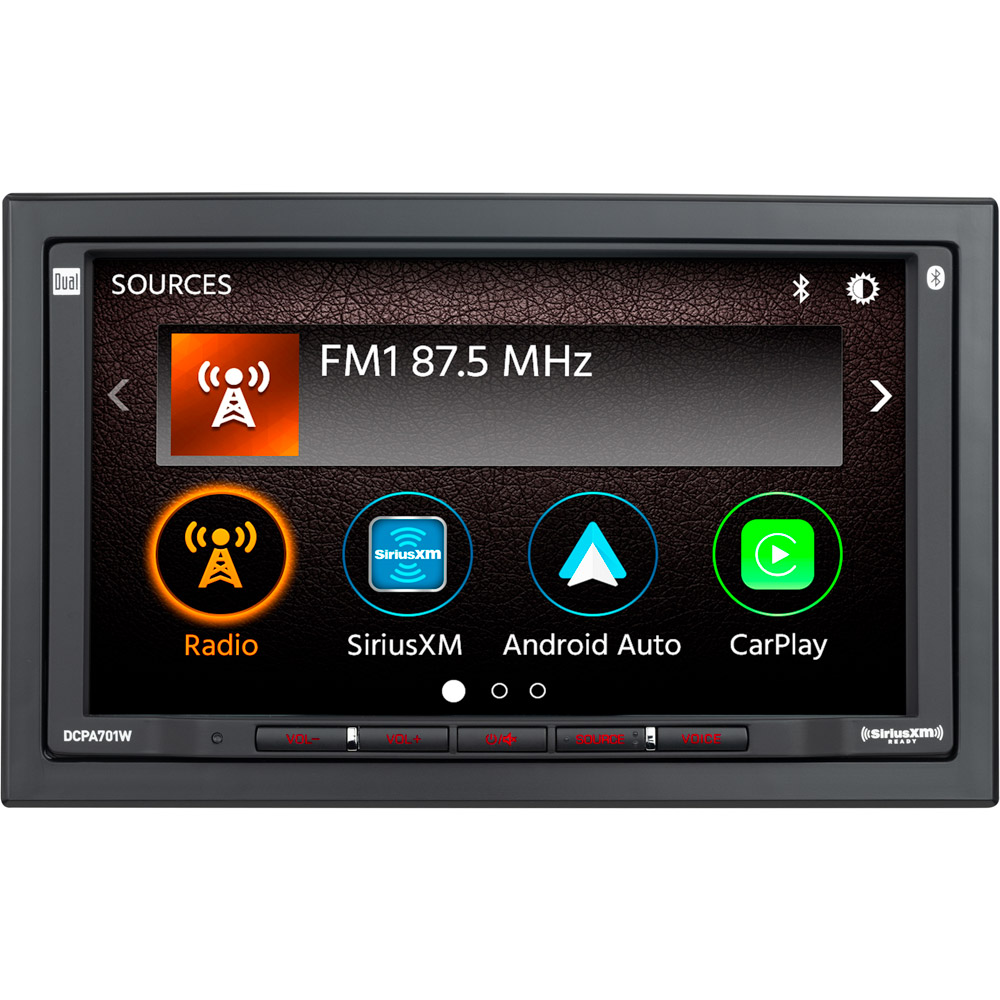

Support for wireless Apple CarPlay and Android Auto delivers your favorite phone features into your dash without the phone ever leaving your pocket or bag. This Digital media receiver features a 7″ touchscreen and fits most 2 DIN openings.

SKU: DCPA701W Categories: ,

Connected Car

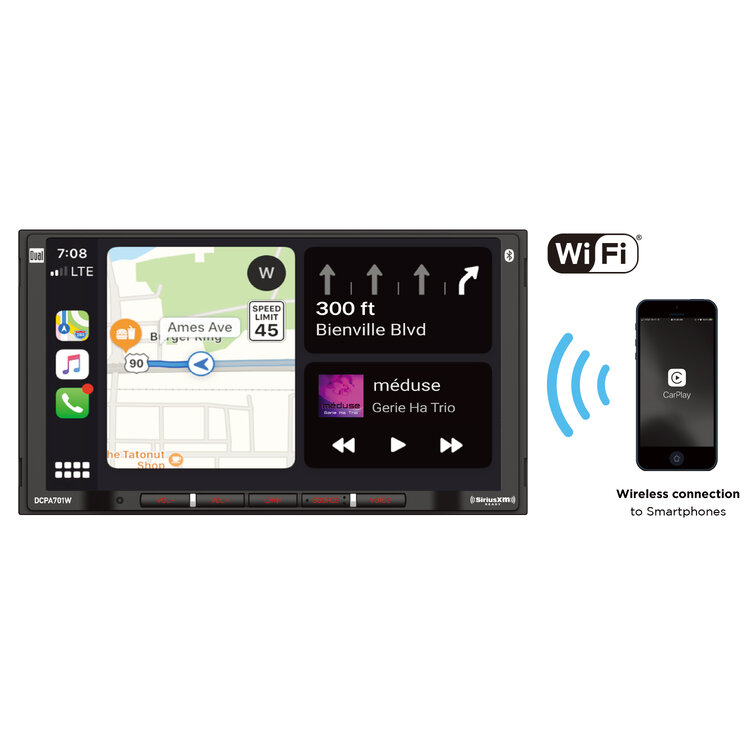

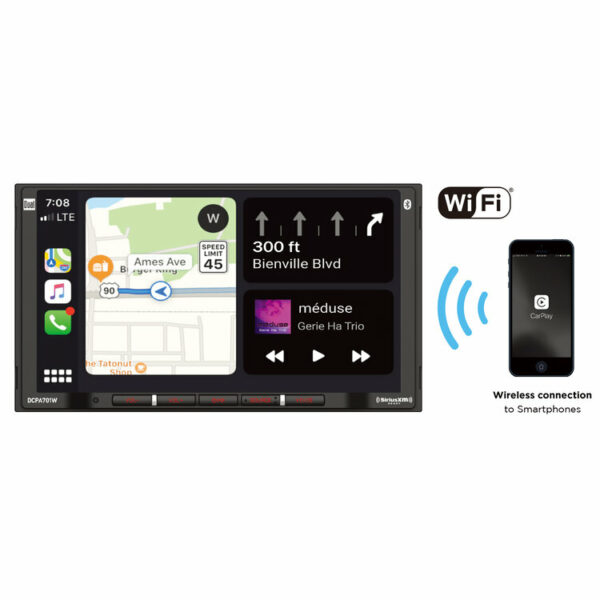

With support for both Apple CarPlay™ and Android Auto™ you can control key phone features directly from the receiver’s touchscreen or via voice-control — significantly reducing driver distraction.

Both Apple CarPlay and Android Auto launch upon connecting a compatible phone to the receiver via USB.

Messages

Ask your phone assistant to send, read, and reply to text messages. This hands free operation minimizes distraction and allows you to keep your hands on the wheel and eyes on the road

Maps

Use your phone assistant to request turn-by-turn directions – search by address or by points of interest. Maps will be mirrored on the receiver’s screen, including traffic information and estimated time to destination.

Music

Access music directly through the receiver’s touchscreen and via your phone assistant. The receiver will display artist and track information.

Phone

Use your phone assistant to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.

SiriusXM-Ready

Easily add a SiriusXM connect tuner to enjoy the widest variety of ad-free music, plus all the sports, talk, comedy, news coverage, all in one place. (SiriusXM Connect Tuner and subscription required. Sold separately.)

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

High-Power Sound

50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the 3 pairs of preamp outputs to add amplifiers for more volume in your system.

Playback

Digital Multimedia

Screen Type

Standard LCD

Size

Double Din

Phone Connectivity

Android Auto, Android Auto Wireless, CarPlay, CarPlay Wireless, Bluetooth

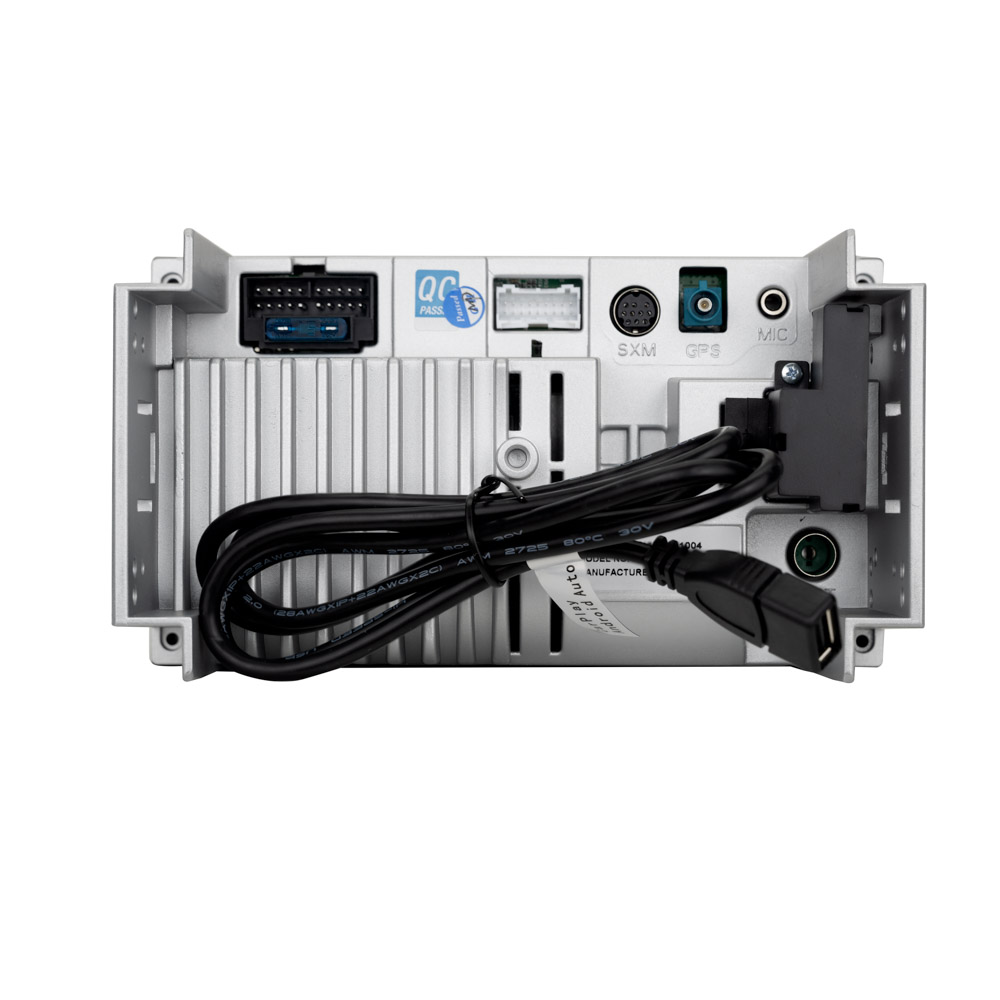

Inputs

Audio/Video, Auxiliary (Rear), USB (Rear), Backup Camera

File Playback

FLAC, MP3

Amplifier Outputs

3 Pair (Front + Rear + Sub)

Steering Wheel Control Compatible

Yes – Adapter Required

Tech Type

Digital Multimedia

Screen Size

7"

Peak Power Output

240W (60W x 4)

Bluetooth Features

Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button

USB Fast Charge

2.1A

RCA Preamp Voltage

2V

Front Panel

Touchscreen

Illumination

Red

Audio Processing

8 EQ Presets, 8 Band Graphic EQ

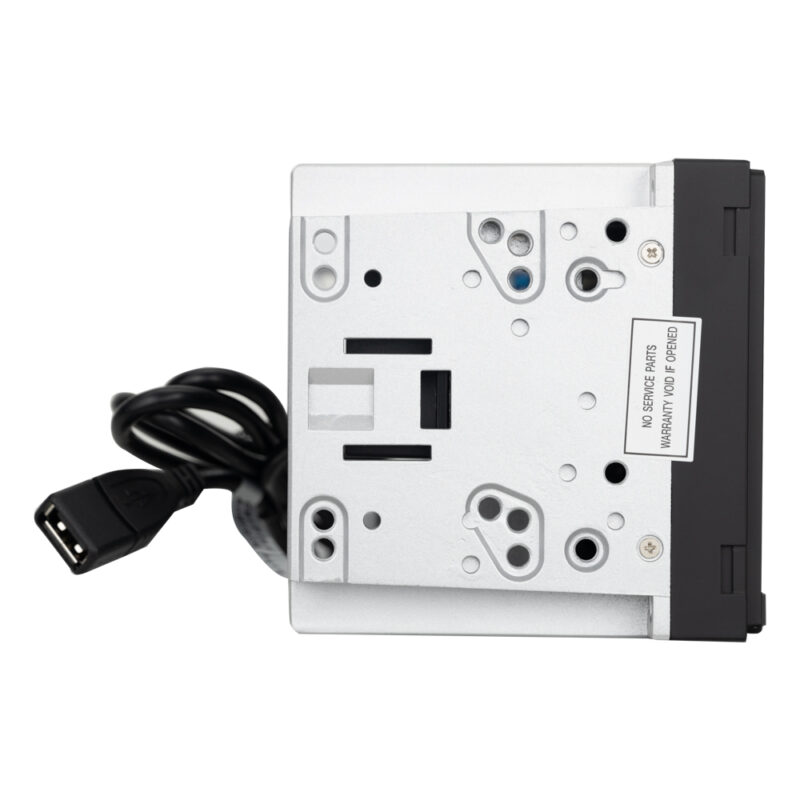

Chassis Depth

Slim Mount (5.1")

Manuals (PDFs)

Firmware

THIS UPDATE ADDRESSES THE FOLLOWING:

  • Improves the screen resolution while in Apple CarPlay or Android Auto
  • Fixes an issue when using the Waze app
  • Improves USB random playback issue

Download

HOW TO UPDATE:

  1. Download the firmware file from the link above.
  2. Unzip the downloaded file. (NOTE: To unzip the file, the program WINRAR is required and can be downloaded from this link: https://www.rarlab.com/download.htm)
  3. Copy the 2 ISPBOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
  4. With the vehicle Off , insert the USB Thumb Drive with Update Firmware into the DCPA701W USB Port.
  5. Turn the vehicle On, the radio will boot up with the update screen.
  6. Once the update is complete, remove the USB thumb drive and turn the radio off and then back on so the firmware update is completed.
  7. Delete the 2 ISPBOOT files from the thumb drive and place the sppf_Autochips.img and DownLoad.bin file onto the USB stick and repeat the same update.
  8. The updates are now completed.

To check that the update was done correctly, goto Settings and press Others and then press System Version. If you see he below information, the update was done correctly.
– Version: DCPA701W
– Date: 20210904_1712
– SDK: 53.0.5.0.0.0.2.1
– MCU: SP_A_303_20210806_01.AJO.E



THIS UPDATE ADDRESSES THE FOLLOWING:

  • Updates GPS location

Download

HOW TO UPDATE:

  1. Download the firmware file from the link above.
  2. Unzip the downloaded file. (NOTE: To unzip the file, the program WINRAR is required and can be downloaded from this link: https://www.rarlab.com/download.htm)
  3. Copy the 2 ISPBOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
  4. With the vehicle Off , insert the USB Thumb Drive with Update Firmware into the DCPA701W USB Port.
  5. Turn the vehicle On, the radio will boot up with the update screen.
  6. Once the update is complete, remove the USB thumb drive and turn the radio off and then back on so the firmware update is completed.
  7. The updates are now completed.

To check that the update was done correctly, goto Settings and press Others and then press System Version. If you see he below information, the update was done correctly.
– Version: DCPA701W
– Date: 20220123_1647
– SDK: 53.0.5.0.0.0.2.1
– MCU: SP_A_303_20210806_01.AJO.E
