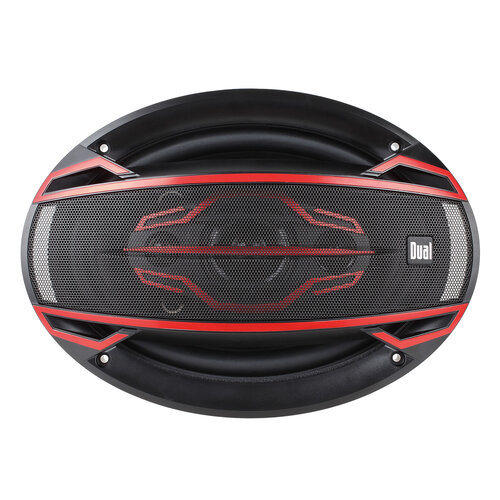

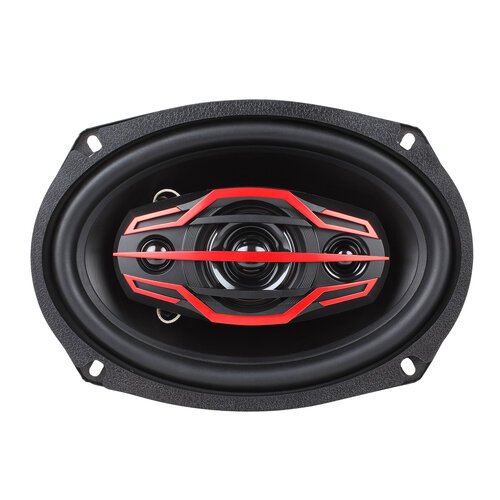

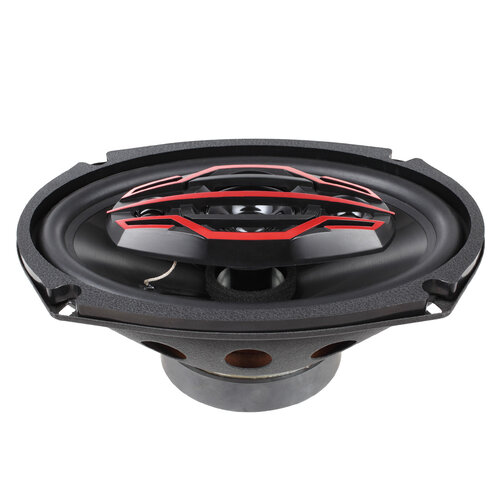

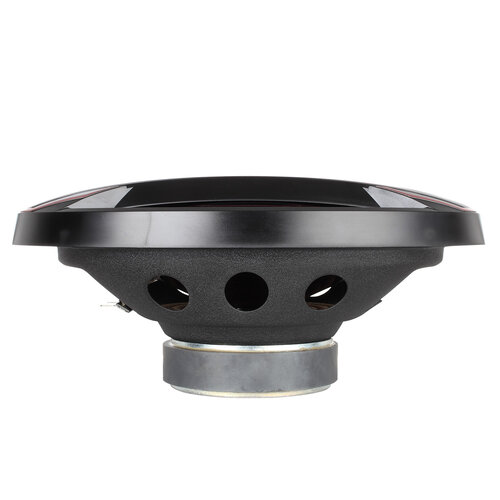

6″ x 9″ 4-Way Speakers – DLS694

Authorized Retailer:

SKU: DLS694 Categories: ,


4-Way Design

The four way design enables mid and high frequencies to be projected in a uniform and wide dispersion pattern for smooth off-axis response and high quality sound performance.


Dual Piezo Tweeters and a Balanced Dome Midrange

The silk tweeters and balanced midrange offers smooth high frequency response and enhanced vocal quality.


Rubber Surround

The rubber surround is designed to withstand heat and moisture for a prolonged speaker lifespan.


Injection Molded Polypropylene (IMPP) Woofer Cone

This style speaker cone is designed for higher sensitivity and rigidity which results in increased low frequency and richer output.


Vented Basket

The vented basket helps to dissipate heat for improved efficiency and durability.


Low Profile Basket Design

The low profile basket is designed to be unobtrusive and helps with installation flexibility.




  • 6”x 9” 4-way design
  • Injection-molded polypropylene woofer cone
  • High strength butyl rubber surround
  • 58mm Mylar® balanced dome midrange
  • Two 20mm piezo tweeters
  • 6dB/octave high-pass crossover
  • High-performance coated stamped steel basket
  • Hardware included
  • Grilles included


  • Sensitivity: 89dB
  • Frequency response: 50Hz – 20kHz
  • Nominal impedance: 4 Ohm
  • RMS power: 50 Watts
  • Peak power: 200 Watts


  • Top-mount depth: 3.07”
  • Bottom-mount depth: 3.54”
  • Cut-out diameter: 6” x 8.58“
  • Mounting height: 1.04”
  • Tweeter height: 0.59”
