6.5″ 4-Way Speakers – DS465



Retail Exclusive:
No Longer Available

SKU: DS465 Categories: ,

4 way design callout

4-Way Design

The four way design enables mid and high frequencies to be projected in a uniform and wide dispersion pattern for smooth off-axis response and high quality sound performance.

tweeters

Dual Piezo Tweeters and a Balanced Dome Midrange

The silk tweeters and balanced midrange offers smooth high frequency response and enhanced vocal quality.

rubber surround

Rubber Surround

The rubber surround is designed to withstand heat and moisture for a prolonged speaker lifespan.

woofer cone

Injection Molded Polypropylene (IMPP) Woofer Cone

This style speaker cone is designed for higher sensitivity and rigidity which results in increased low frequency and richer output.

vented basket callout

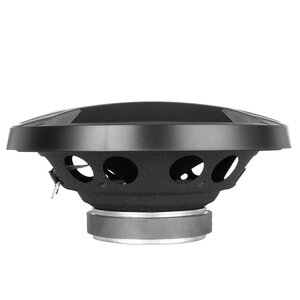

Vented Basket

The vented basket helps to dissipate heat for improved efficiency and durability.

low profile callout

Low Profile Basket Design

The low profile basket is designed to be unobtrusive and helps with installation flexibility.

image shows 160 Watts
6.5 inch opening icon

Features

Features:

  • 6 1/2” – 6 3/4” 4-way design
  • Injection-molded polypropylene woofer cone
  • High strength butyl rubber surround
  • 35mm Mylar® balanced dome midrange
  • Two 15mm piezo tweeters
  • 6dB/octave high-pass crossover
  • High-performance coated stamped steel basket
  • Hardware included
  • Grilles included

Specifications:

  • Sensitivity: 87dB
  • Frequency response: 70Hz – 20kHz
  • Nominal impedance: 4 Ohm
  • RMS power: 40 Watts
  • Peak power: 160 Watts

Dimensions:

  • Top-mount depth: 2.17”
  • Bottom-mount depth: 2.36”
  • Cut-out diameter: 5.60”
  • Mounting height: 0.79”
  • Tweeter height: 0.59”
