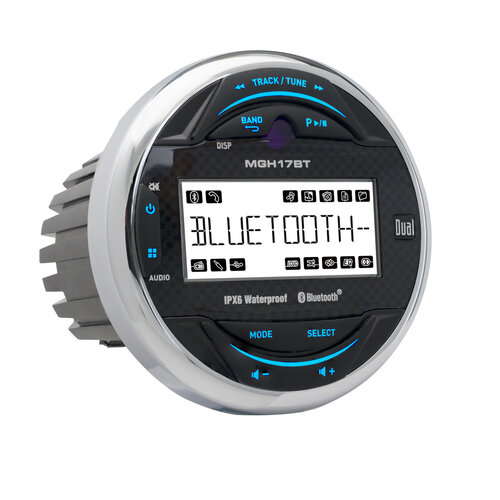

Gauge Hole Media Receiver – MGCP17BT

Authorized Retailer:

academy sports logo with link to product

SKU: MGCP17BT Categories: ,

bluetooth icon

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the dedicated buttons.


Versatile Input Options

Listen to your favorite songs from USB thumb drives or plug in any device that uses a 3.5mm headphone jack.

The USB and 3.5mm inputs are conveniently located on the front of the receiver. Charges most smartphones through the front panel USB.

240 Watts Icon

High Power Sound

50 Watts of peak power built-in for each of your 4 speakers.

Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.

Use the one pair of preamp outputs to add an amplifier for more volume in your system.


Conformal Coating

A transparent protective film is applied to surfaces of all interior printed circuit boards. This additional layer of defense guards against dust, condensation and corrosion – ensuring maximum longevity.

radio icon

High-Contrast LCD

The vibrant positive-type LCD (Liquid Crystal Display) provides enhanced visibility under the toughest boating environments. High-contrast black characters on a light blue background ensure readability in any situation – from total darkness to direct sunlight.

weather icon

UV Resistant

The faceplate and other exposed elements of the receiver are carefully injection-molded using high-temperature ultraviolet resistant resins, preventing them from breaking down in the sun and giving you peace of mind to enjoy your music on the water even during the sunniest of days.


Gauge Hole Installation

This receiver is designed to fit perfectly in the boat’s console gauge openings. With a 2.6”mounting depth and a 3”mounting diameter installation.

IPX6 icon

IPx6 Waterproof

Dual gauge hole receivers are designed to meet the IPx6 waterproof standard. The receivers will not fail or allow water seepage when exposed to heavy splashing or rain.

battery icon

Zero Current Draw / Battery Indicator

This receiver has a zero current draw with memory backup to save your boat’s battery while still backing up your presets and keeping time.

weather resistant icon

Built-In Weatherband Tuner

Use the weatherband tuner to stay one step ahead of storms while out on the water.



  • 240 Watts (60 W x 4)
  • Built-in Bluetooth wireless technology for audio streaming (A2DP, AVRCP)
  • Weatherband tuner
  • 10 Character LCD
  • MP3 playback
  • Rear USB input (1A)
  • 1 Pair of rear RCA aux inputs
  • 1 Pair of preamp outputs
  • 2 Band tone control (Bass/Treble)
  • 5 Preset EQ curves (Pop, Jazz, Classic, Beat, Rock)
  • AM/FM Receiver with 30 station presets (18FM/12AM)
  • IPx6 waterproof
  • Zero current draw
  • Low battery indicator
  • Wireless remote control

Manuals (PDFs)
