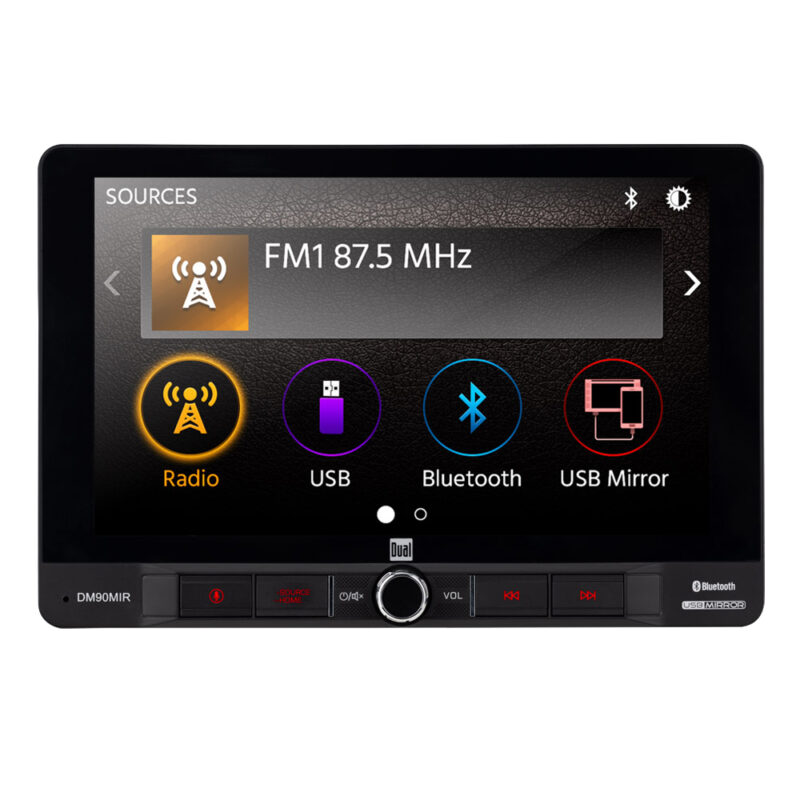

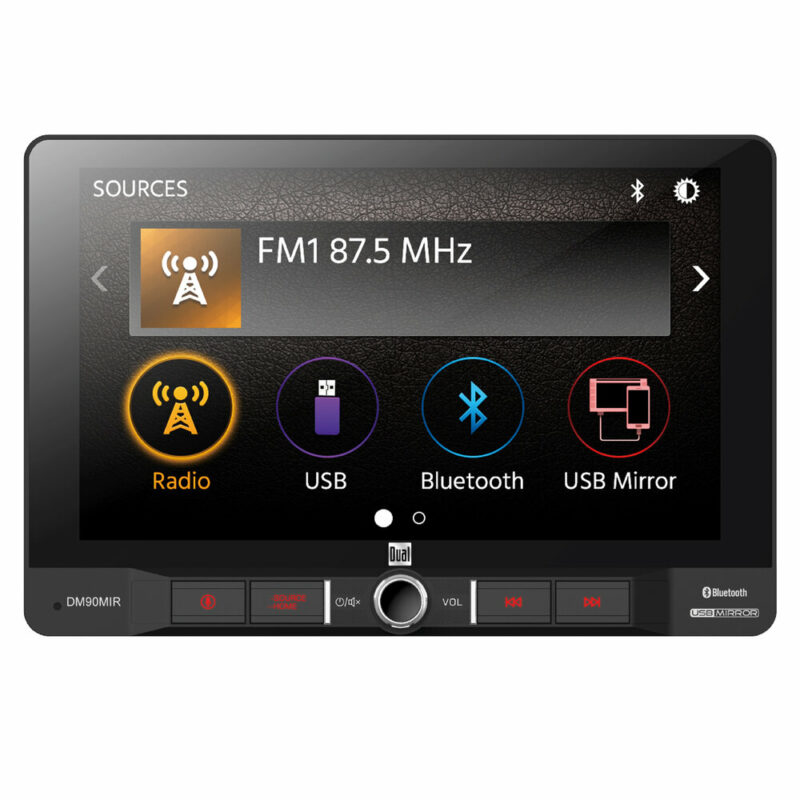

9″ USB Mirroring AV Media Receiver – DM90MIR


  • Mirror your favorite smartphone apps onto your receiver’s screen while parked
  • Featuring an extra large 9″ screen
  • This digital media receiver fits most 1 DIN dash openings
warranty information
60 day return policy
free shipping in United States

SKU: DM90MIR Categories: ,

The DCPA90MIR features an extra-large 9″ adjustable touchscreen with USB screen mirroring for your smartphone while parked. This digital media receiver fits most 1 DIN dash openings.

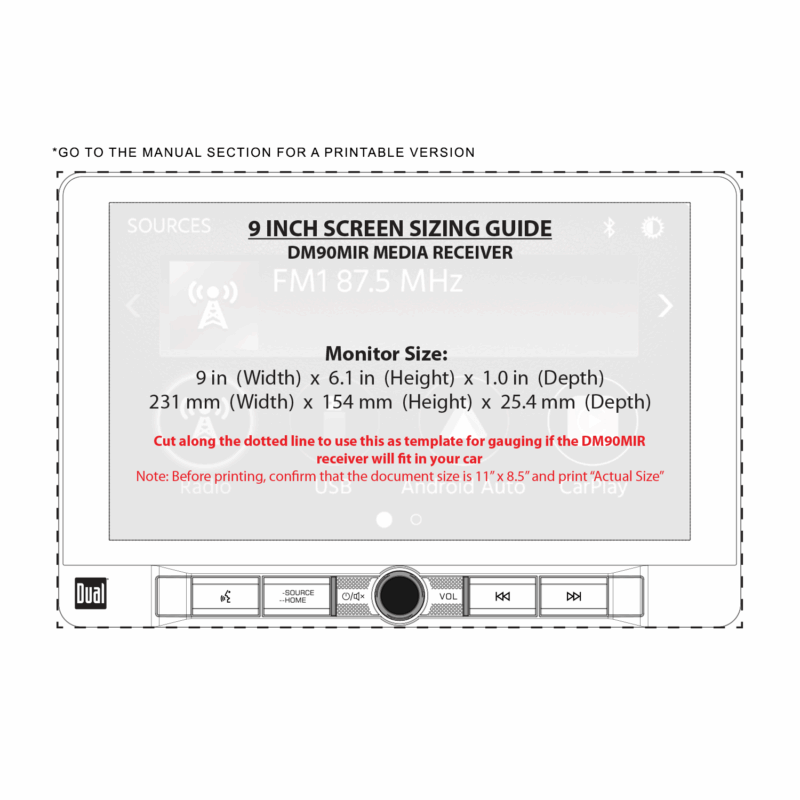

9″ Extra-Large Screen

The 9″ Extra-large LED backlit LCD touchscreen maximizes your driving experience. The large display is easy to navigate and makes managing your music and apps effortless and convenient.
Adjustable height, depth, tilt, and pivot options let you dial in the perfect angle. Designed to fit most 1 DIN dash openings (2” x 7”) this receiver brings a next-generation infotainment experience to your current vehicle.

radio front tiltable

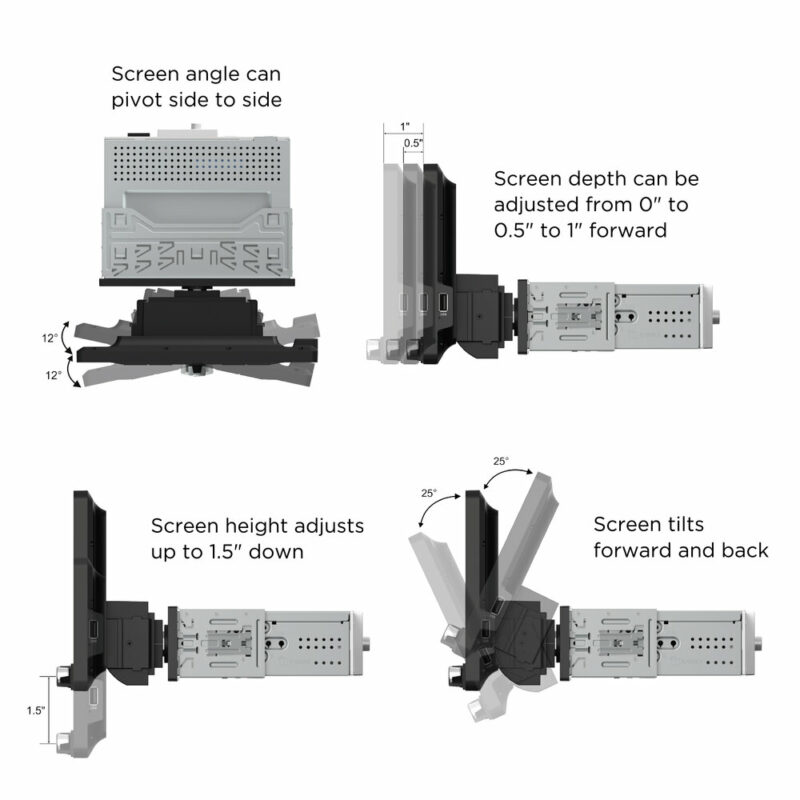

Multiple Adjustment Options

radio back side

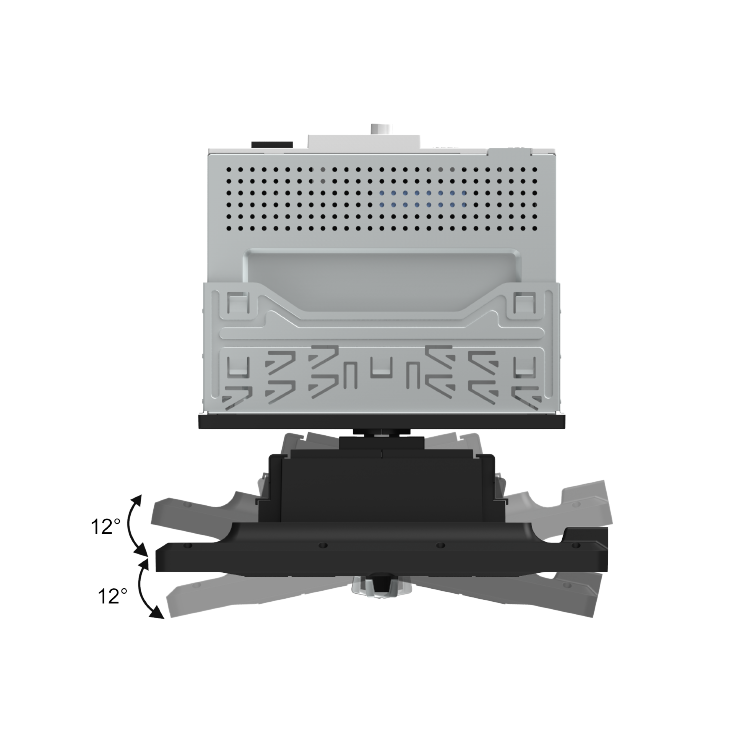

Screen angle can pivot side to side

radio left side

Screen height adjusts up to 1.5” down

radio left side tilt angles

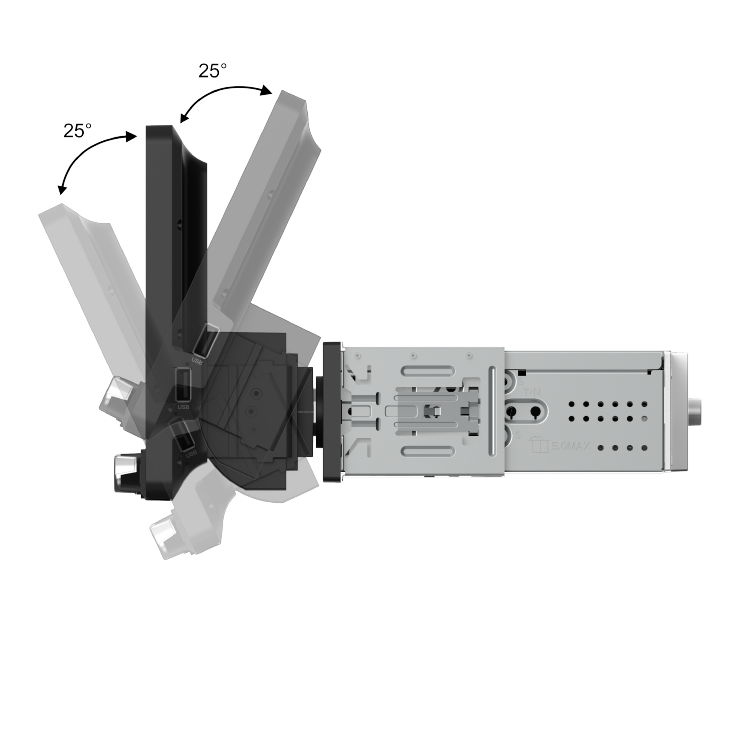

Screen tilts forward and backward

radio left side

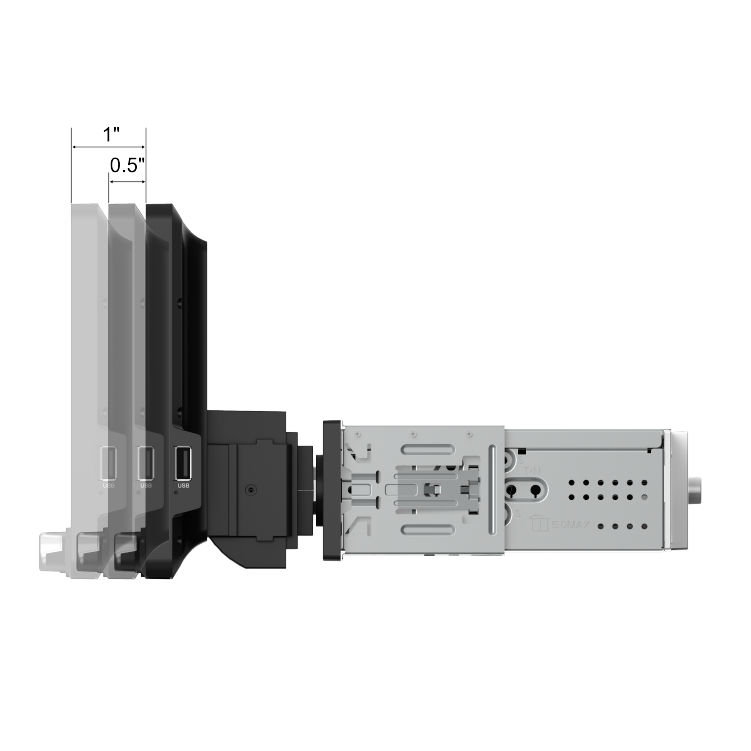

Screen depth can be adjusted from 0” to 0.5” to 1” forward


Screen Mirroring

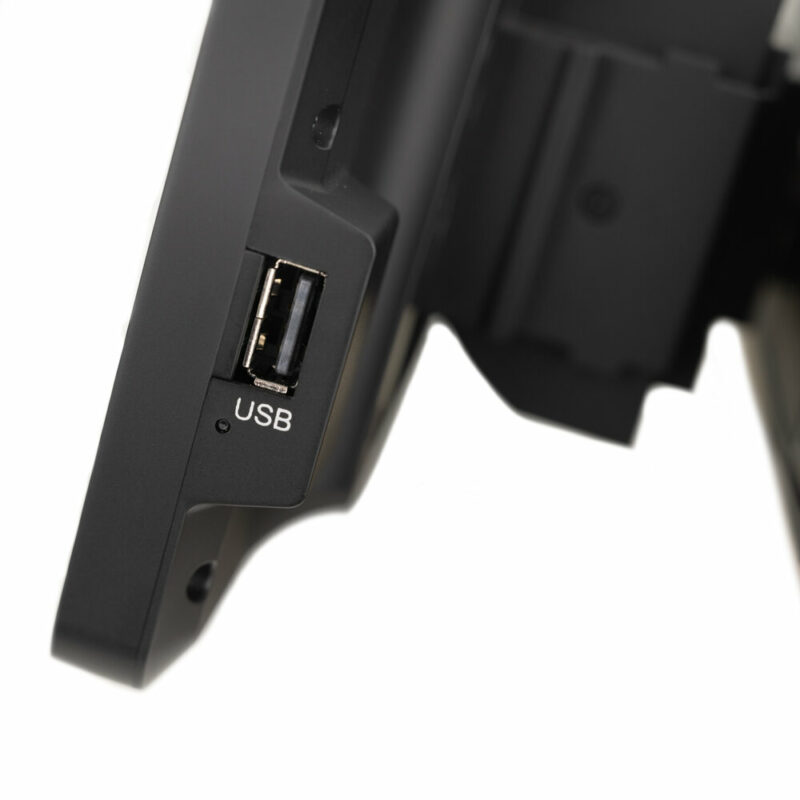

This model allows you to mirror the screen of your smartphone onto the receiver’s screen via USB cable connection. Enjoy high-quality picture and accurate mirroring thanks to the built-in digital-to-digital USB converter. *USB connection cable sold separately.

bluetooth icon

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

240watts icon

High-Power Sound

50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the 3 pairs of preamp outputs to add amplifiers for more volume in your system.



Phone Connectivity




File Playback


Amplifier Outputs

Steering Wheel Control Compatible

Tech Type

Screen Size

Peak Power Output

Bluetooth Features

, , ,

USB Charge

RCA Outputs

Front Panel


Audio Processing

, ,

Chassis Depth

AM/FM Receiver

Manuals (PDFs)

Smart Remote App

iPlug P1 Smart Remote App


If you are having issues with the USB Mirroring feature functioning properly, the below firmware download will fix the issue.

Note: Software is not interchangeable between models. Please do not attempt this update on any other model other than the DM90MIR

Download File: DM90MIR Firmware

How to Update:

  1. Download the firmware file from the link above.
  2. Unzip the downloaded file. (NOTE: To unzip the file, the program WINRAR is required and can be downloaded from this link: https://www.rarlab.com/download.htm)
  3. Copy the S361T.abs file to an empty USB Thumb Drive formatted to FAT32.
  4. With the vehicle Off, insert the USB Thumb Drive with the updated firmware into the CM701MIR USB Port.
  5. Turn the vehicle On, press the Home icon in the top left corner of the screen, and select USB Mirroring from the main screen. You will see the current software version towards the bottom in the middle of the screen (S361TC8HV042VW). The update is performed automatically
  6. When the message PLS reboot! Is displayed, turn the vehicle Off and remove the USB thumb drive. The update is now complete. The updated software version will now read (S361TC8HV043VW).
  7. The radio is now ready to use the USB Mirroring feature
