10.1” Car Receiver with Wireless Android Auto & Apple Carplay – DMCPA10W
- Wireless Android Auto & Apple CarPlay
- 2 Rear USB with 2.1A Charge
- Front & Rear Camera Inputs
- Fits most Single and Double DIN openings
Authorized Retailer:

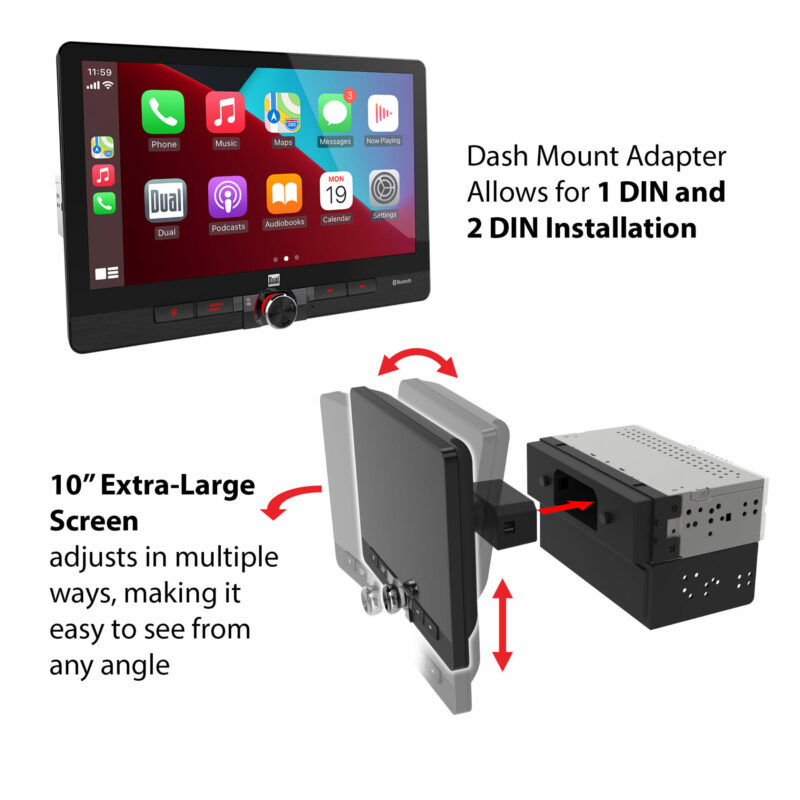

10.1″ Extra-Large Screen adjusts in multiple ways, making it easy to see from any angle
Dash Mount Adapter Allows for 1 DIN and 2 DIN Installation
Connected Car
With support for both Apple CarPlay™ and Android Auto™ you can control key phone features directly from the receiver’s touchscreen or via voice-control — significantly reducing driver distraction.
Both Apple CarPlay and Android Auto launch upon connecting a compatible phone to the receiver via USB or wirelessly.
Messages
Ask your phone assistant to send, read, and reply to text messages. This hands free operation minimizes distraction and allows you to keep your hands on the wheel and eyes on the road
Maps
Use your phone assistant to request turn-by-turn directions – search by address or by points of interest. Maps will be mirrored on the receiver’s screen, including traffic information and estimated time to destination.
Music
Access music directly through the receiver’s touchscreen and via your phone assistant. The receiver will display artist and track information.
Phone
Use your phone assistant to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
Music Streaming & Hands-free Calling
Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.
| Playback | |
|---|---|
| Screen Size | |
| Peak Power Output | |
| Phone Connectivity | Android Auto, Android Auto Wireless, CarPlay, CarPlay Wireless, Bluetooth |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling |

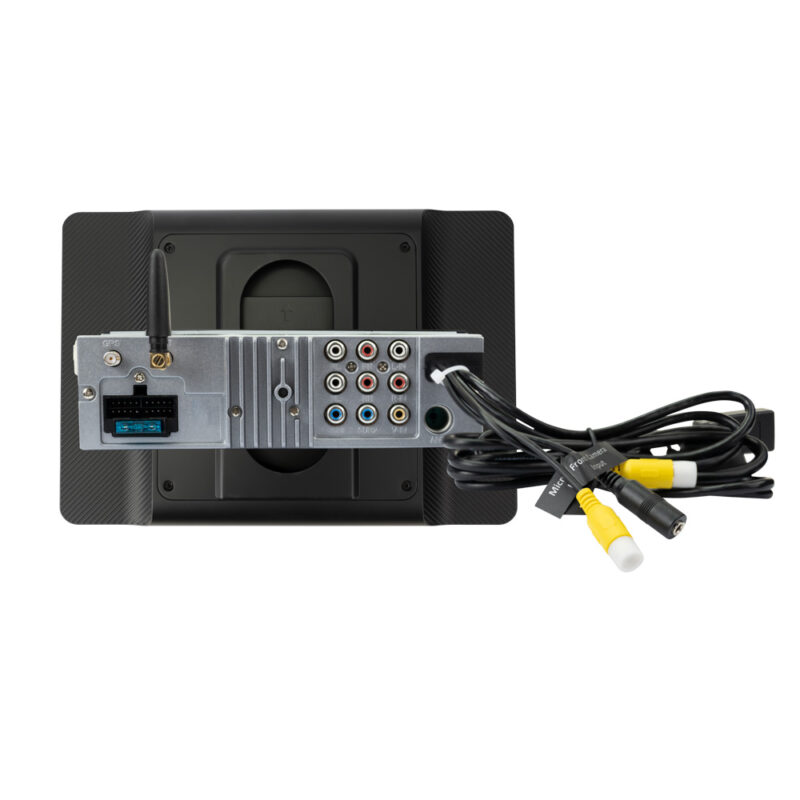

| Inputs | USB (Rear) x 2, Audio/Video (Rear), Front Camera, Backup Camera |
| USB Charge | |
| File Playback | |
| RCA Outputs | |
| Audio Processing | |
| Gain Adjustment | |
| Crossover | |
| Illumination | |
| Wallpapers | |
| Steering Wheel Control Compatible | |
| AM/FM Receiver | |
| Size | |
| RCA Preamp Voltage | 2V |
| Chassis Depth | |
| Screen Adjustment | Height, Pivot, Tilt |
Manuals (PDFs)
Firmware
Firmware Update Instructions
This update addresses the following:
- Improved touchscreen response time.
- Change the Safety Notice screen to disappear automatically after 2 seconds.
- Change Rear Camera View settings from on to off (default: OFF).
- Add Time Sync Settings – OFF/GPS/RDS/Phone (default: OFF).
Note: Software is not interchangeable between models. Please do not attempt this update on any model
other than the DMCPA10W.
How to Update:
- Download the firmware file from the link below.
- Unzip the downloaded file. Note: To unzip the file, the program WINRAR is required and can be
downloaded from this link:
WINRAR Download - Copy the
ISPBOOT.BINfile to an empty USB Thumb Drive formatted to FAT32. - Insert the USB Thumb Drive with Update Firmware into the DMCPA10W USB/Charging Port.
- Navigate to Settings and scroll till you get to the About button on the left
side of the menu. - Press the About button and you will see on the right-hand side Software
Update. - Press Software Update and you will see the Update button. Press
Update to begin the firmware upgrade. - Once the update is complete, remove the USB thumb drive.
- The update is now complete.
Download Firmware Zipped File: DMCPA10W Firmware Download
