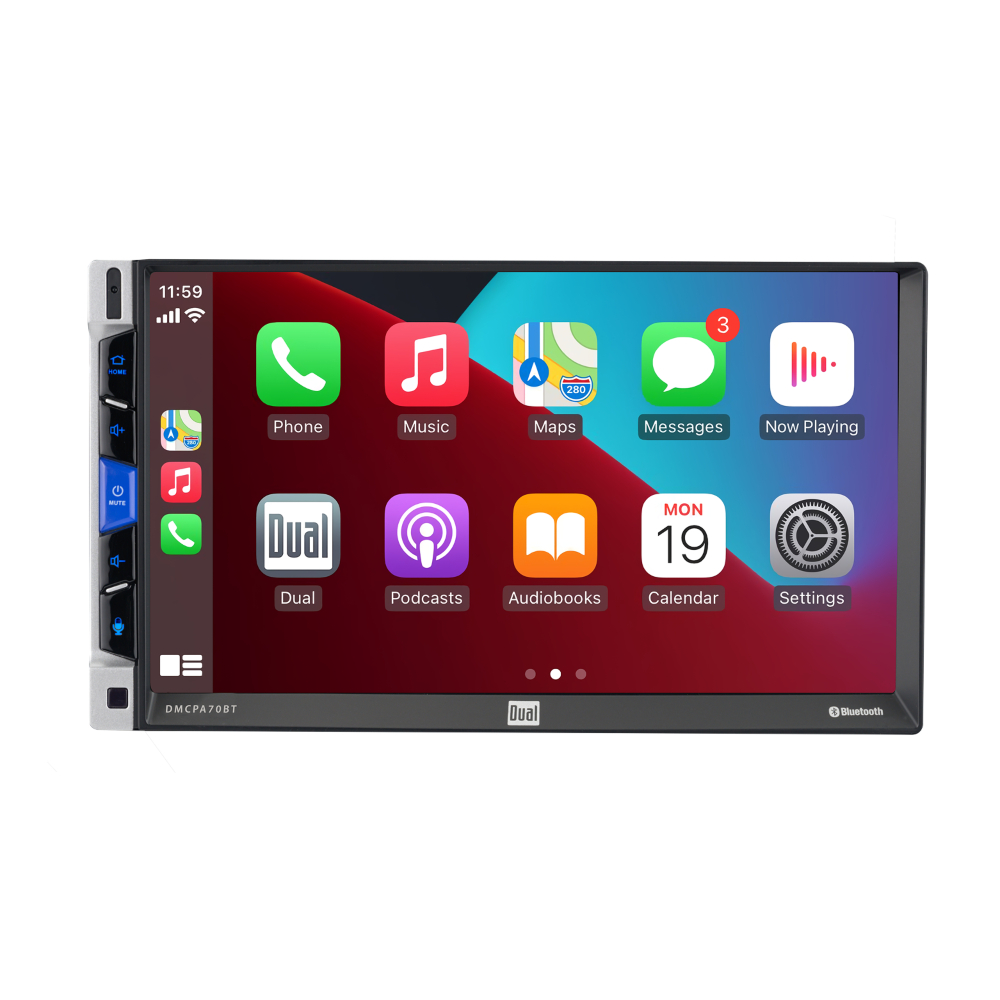

7″ AV Media Receiver with Apple CarPlay and Android Auto – DMCPA70BT
- Support for wireless Apple CarPlay and Android Auto
- Your favorite phone features on your dash without the phone ever leaving your pocket or bag
- Digital media receiver features a 7″ touchscreen
- Fits most 2 DIN openings
- Rear Camera Input
Authorized Retailer:
*Upgrade to a 2-year Warranty by Registering Your Item within 60 Days of Purchase.
Wired Apple CarPlay
and Android Auto
Play music, make calls, and check the traffic.
Connect via USB for seamless integration and audio playback.
Use Your Phone’s Assistant—a dedicated voice activation button summons the virtual assistant on your smartphone.
Additional Features
Amplifier-Ready
Want more volume now or down the road? Use the three pairs of preamp outputs to add amplifiers for more volume in your system.
200 Watts Peak Power
50 Watts of peak power built-in for each of your 4 speakers.
Fits 2 DIN Openings
The receiver is designed to fit in most 4” x 7” double DIN openings.
Not a CD/DVD Player
Rear Camera
Input
Add a backup camera to get an expanded view around your vehicle and eliminate blind spots!
| Stereo Type | AV Receiver |
|---|---|
| Playback | |
| Size | |
| Phone Connectivity | |
| Amplifier Outputs | 3 Pair (Front + Rear + Sub) |
| Steering Wheel Control Compatible | |
| Screen Size | |
| Peak Power Output | |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |
| Inputs - All | |
| USB Charge | |
| File Playback | |
| Preamp Outputs | |
| Front Panel | |
| Illumination | |
| Audio Processing | 8 EQ Presets, 8 Band Graphic EQ, Time Alignment |
| AM/FM Receiver | 30 Station presets (18FM/12AM) |
Firmware Update Information
A Note about Firmware Update via USB Devices
We recommend following the guidelines below for your USB drive:
- Use an 8GB or 16GB USB drive from a common USB drive manufacturer.
- Some recommended brands include:
- SanDisk®
- Kingston®
- PNY®
- Verbatim®
- Corsair®
- The drive should support USB 2.0 or faster transfer speeds. Older version USB 1.0 drives are not compatible.
- Format the drive using FAT32 as the file system on your laptop or computer before copying the software update to the USB drive.
FIRMWARE UPDATES AND IMPROVEMENTS:
- Improves the screen resolution while in Apple CarPlay or Android Auto
Download Firmware Update for DMCPA70BT
Download the firmware file from the link above.
- Unzip the downloaded file.
- Copy the 2 ISPBOOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
- With the vehicle Off, insert the USB Thumb Drive with Update Firmware into the DMCP70BT USB Port.
- Turn the vehicle On, the radio will boot up with the update screen.
- Once the update is complete, the radio will shut down and power back up.
- Remove the USB Thumb Drive from the unit.
- The update is now complete.
To check that the update was done correctly, goto Settings and press Others and then press System Version. If you see the information listed below, the update was done correctly.
- Version: DMCPA70BT V1.2
- Date: 20210513_1945
- SDK: 24.0.2.2.2.0.1.0
- 7" Extra-large LED backlit touchscreen LCD (1024p x 600p)
- Works with Apple CarPlay™
- Supports Android Auto™
- Built-in Bluetooth with hands-free calling, music streaming with ID3 tags, and phonebook support (HFP, A2DP, AVRCP, PBAP). External microphone.
- AM/FM tuner with 30 stations presets (18FM/12AM)
- Rear USB input with 1.5 Amp fast charging
- Backup camera input (RCA)
- Rear RCA A/V input
- 3 Pair of RCA preamp outputs (Front+Rear+Sub)
- Media playback: USB
- File formats: FLAC/MP3
- Digital media unit – will not play CDs/DVDs
- 8 Band graphic EQ
- 8 EQ presets (Default, Custom, Classic, Rock, Jazz, Electric, Pop, & Soft)
- 200 Watts (50 W x 4) MOSFET
- Steering Wheel Control (SWC) Input (Compatible with most SWC Interfaces)
- Wireless IR remote included
