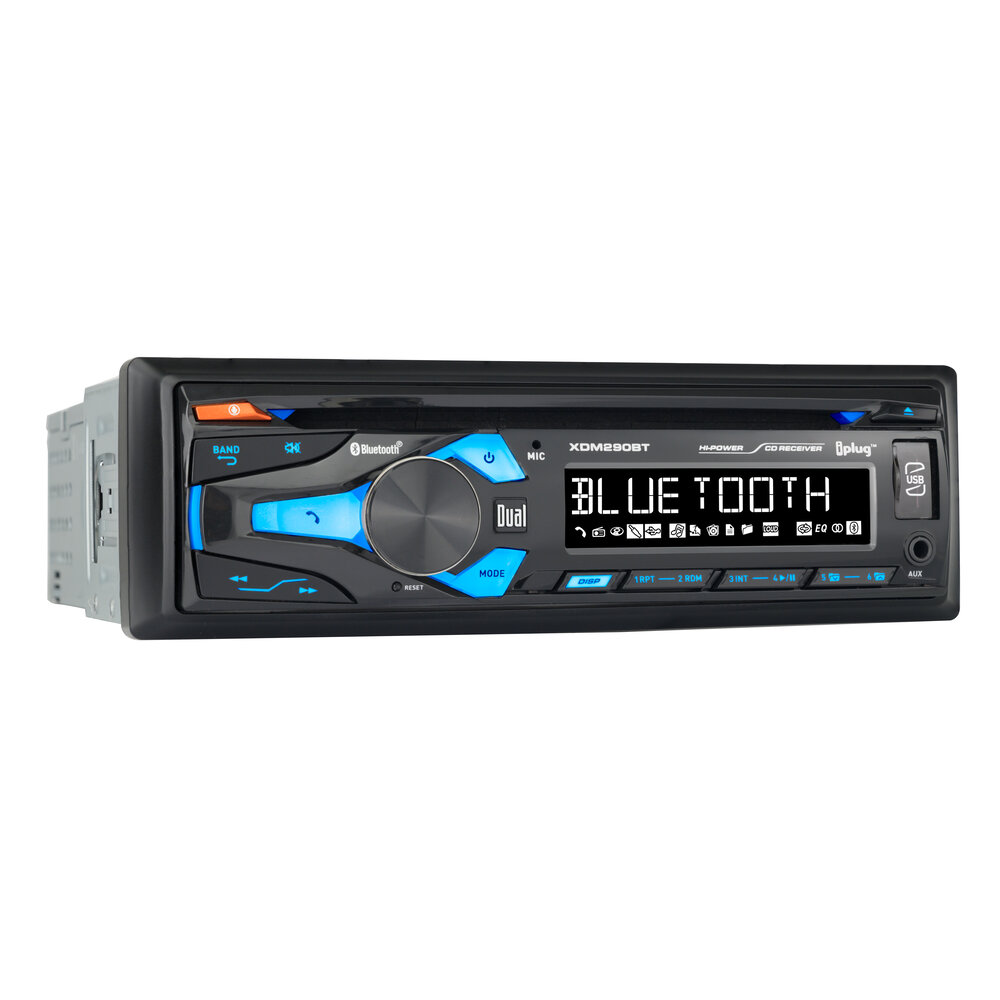

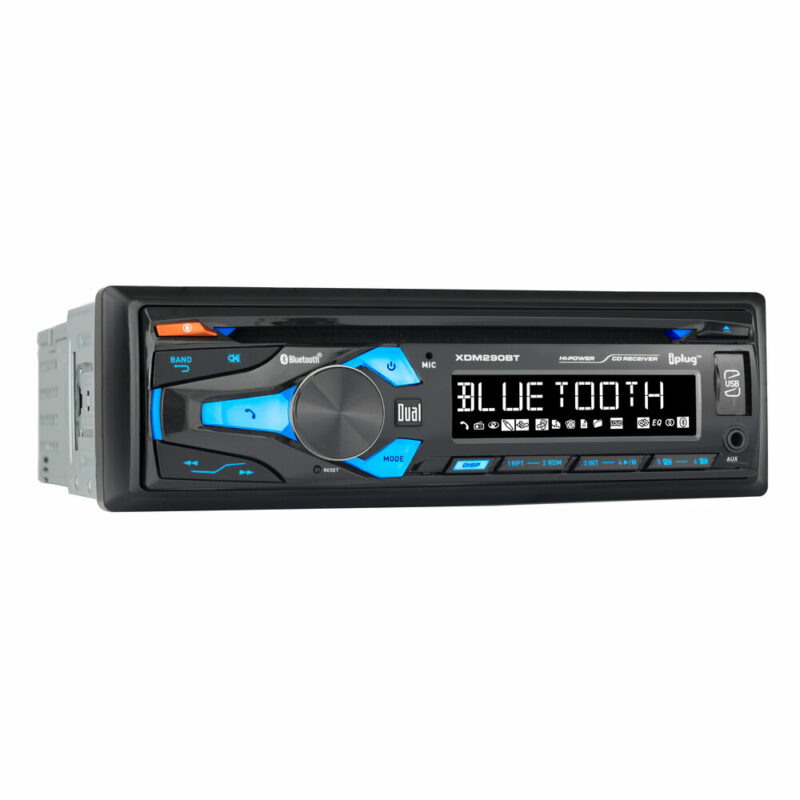

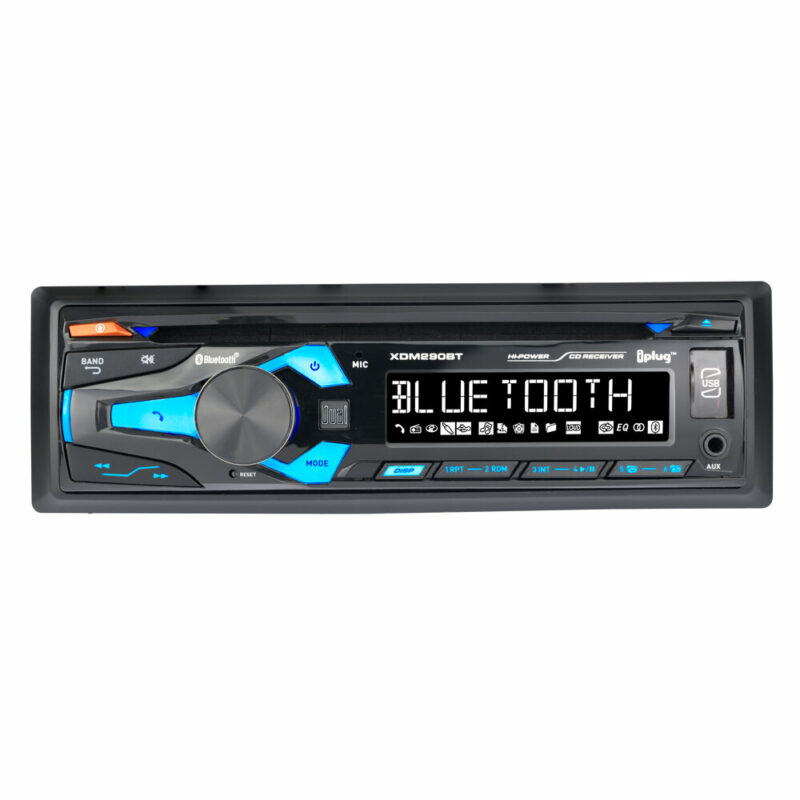

CD Receiver – XDM290BT
Authorized Retailer:
Music Streaming & Hands-free Calling
Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.
Voice Activation Button
The receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car’s Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!
iPlug Smart Remote App
Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth.
Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight.
High-Power Sound
50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the one pair of preamp outputs to add an amplifier for more volume in your system.
| Playback | |
|---|---|
| Mounting Size | |
| Phone Connectivity | |
| Inputs | |
| Amplifier Outputs | |
| Peak Power Output | |
| Bluetooth Features | Audio Streaming, Hands-free Calling, Internal Microphone, Voice Activation Button |
| Inputs - All | |
| File Playback | |
| LCD | |
| RCA Outputs | |
| Illumination | |
| Audio Processing | |
| Wireless Remote | |
| AM/FM Receiver |
Features
- Built-in Bluetooth® for hands-free calling, audio streaming, and player control. Built-in microphone.
- Easy access voice activation button to activate Siri® or the Google Assistant™ on your phone
- Dual iPlug Smart Remote app via Bluetooth (Apple®/Android™)
- AM/FM Receiver with 30 Station presets (18FM/12AM)
- 10 Character LCD
- Front panel USB Input (1A charge)
- Front panel 3.5mm AUX input
- MP3 playback from CDs and USB drives
- 1 Pair of RCA preamp outputs (front or rear)
- 7 Preset EQ curves (Pop, Jazz, Classic, Beat, Rock, Flat, and User)
- 2 Band tone control (Bass/Treble)
- 200 Watts (50 Watts x 4)
Manuals (PDFs)
Smart Remote App
iPlug P2 Smart Remote App
Firmware
This update addresses the following: Adds the Clock Display while in Bluetooth Streaming Mode
IMPORTANT : Do not interrupt power or start your vehicle while performing any firmware updates as this will potentially lock up your radio and not complete the update.
Note: Software is not interchangeable between models. Please do not attempt this update on any other model other than the XDM290BT
Download Firmware Update for XDM290BT
Firmware Update Instructions
- Insert USB thumb drive with the firmware into the front panel USB port
- Put radio into AUX Mode and set the volume level to 00.
- Press the volume knob for 5 seconds to check the firmware version.(VER200824)
- Press the volume knob again for 5 seconds to execute the firmware update.
- When firmware update is completed, the radio will power off automatically.
- Remove the thumb drive and power the radio back on. To check that the firmware updated correctly, repeat steps 2 and 3. VER220125 will be displayed if the firmware was done correctly.
