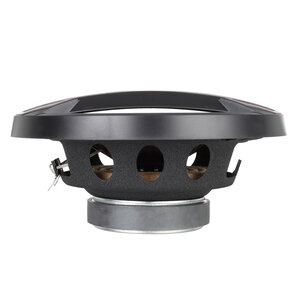

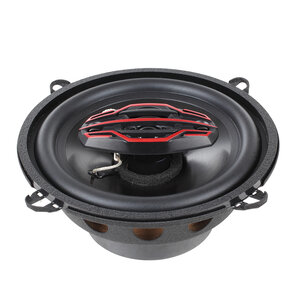

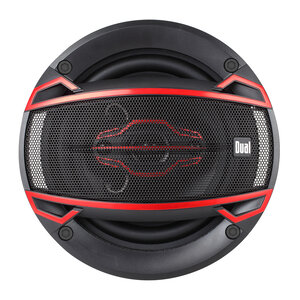

5.2″ 4-Way Speakers – DLS524



Authorized Retailer:



SKU: DLS524 Categories: ,

4way

4-Way Design

The four way design enables mid and high frequencies to be projected in a uniform and wide dispersion pattern for smooth off-axis response and high quality sound performance.

tweeters

Dual Piezo Tweeters and a Balanced Dome Midrange

The silk tweeters and balanced midrange offers smooth high frequency response and enhanced vocal quality.

rubbersurround

Rubber Surround

The rubber surround is designed to withstand heat and moisture for a prolonged speaker lifespan.

woofercone

Injection Molded Polypropylene (IMPP) Woofer Cone

This style speaker cone is designed for higher sensitivity and rigidity which results in increased low frequency and richer output.

ventedbasket

Vented Basket

The vented basket helps to dissipate heat for improved efficiency and durability.

lowprofile

Low Profile Basket Design

The low profile basket is designed to be unobtrusive and helps with installation flexibility.

120w
5 25in opening icon
Speaker Size

Speaker Type

Grilles

Max RMS Power

Impedance

Peak Power Output

Sensitivity

Frequency Response

Tweeter Material

Tweeter Size

Midrange Material

Midrange Size

Woofer Material

Basket Material

Surround Material

Crossover

Cutout Diameter

Top-Mount Depth

Bottom-Mount Depth

Mounting Height

Tweeter Height

Features

Features:

  • 5 1/4” 4-way design
  • Injection-molded polypropylene woofer cone
  • High strength butyl rubber surround
  • 30mm Mylar® balanced dome midrange
  • Two 15mm piezo tweeters
  • 6dB/octave high-pass crossover
  • High-performance coated stamped steel basket
  • Hardware included
  • Grilles included

Specifications:

  • Sensitivity: 85dB
  • Frequency response: 75Hz – 20kHz
  • Nominal impedance: 4 Ohm
  • RMS power: 30 Watts
  • Peak power: 120 Watts

Dimensions:

  • Top-mount depth: 1.97”
  • Bottom-mount depth: 2.20”
  • Cut-out diameter: 4.50”
  • Mounting height: 0.39”
  • Tweeter height: 0.51”
