XHUD1000 Head Up Display



$549.99

Enhances situational awareness for General Aviation
  • Enables pilots to view key flight data with their head up and eyes forward
  • Wireless connectivity with portable receivers, panel avionics, tablets, & smartphones
  • Compact & portable with flexible mounting to fit with most planes

SKU: XHUD1000 Category:

xhud1000 xgps190 combo

Enhances situational awareness for General Aviation

3 Selectable Modes:

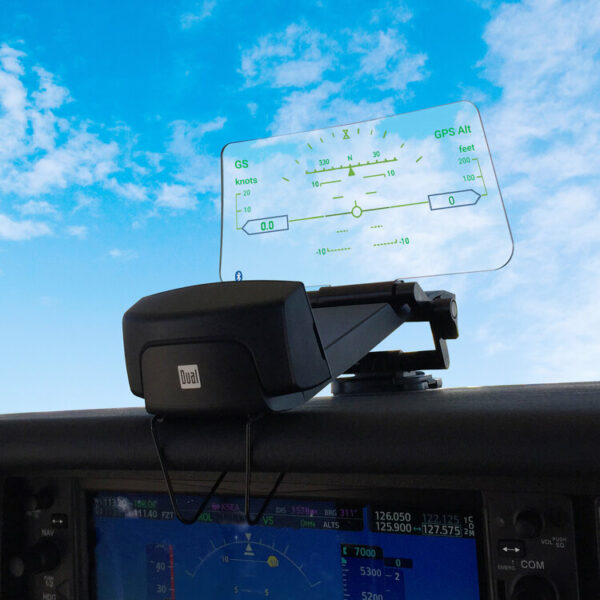

  • AHRS: Displays altitude, airspeed, attitude, bank angle, and compass heading on a classic HUD graphic for monitoring fights.

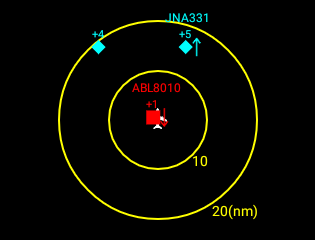

  • Traffic: Displays ADS-B traffic on a radar style graphic with selectable range, using TCAS symbology
  • Tablet Graphics: Displays graphics from separate apps running on tablet or smartphone (e.g. AHRS, synthetic vision, maps)
  • Compatible with both iOS & Android devices
  • Compatible with Dual XGPS190 & Stratus 3 for AHRS & Traffic modes, & XGPS170/170D for Traffic mode
  • Free Dual app for HUD control
  • Wireless connectivity via Bluetooth & WiFi

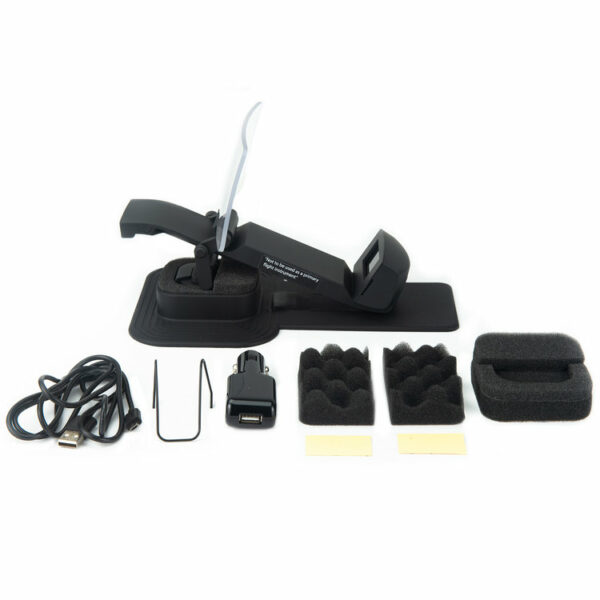

  • Non-slip anti-vibration holder & mounting bracket, for easy installation on most aircraft

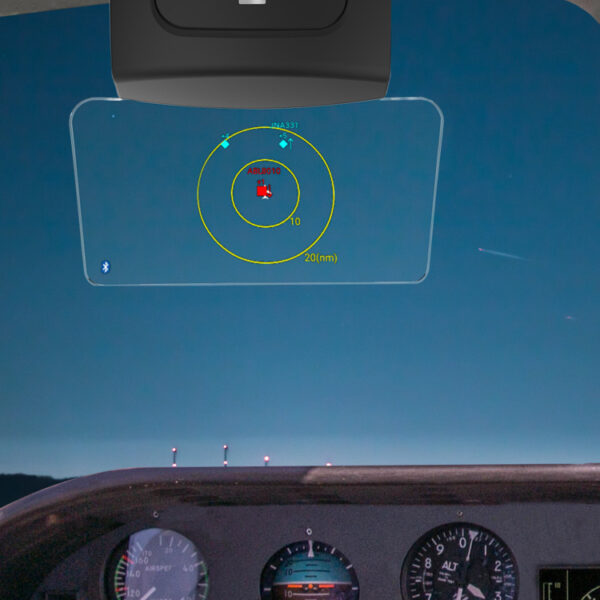

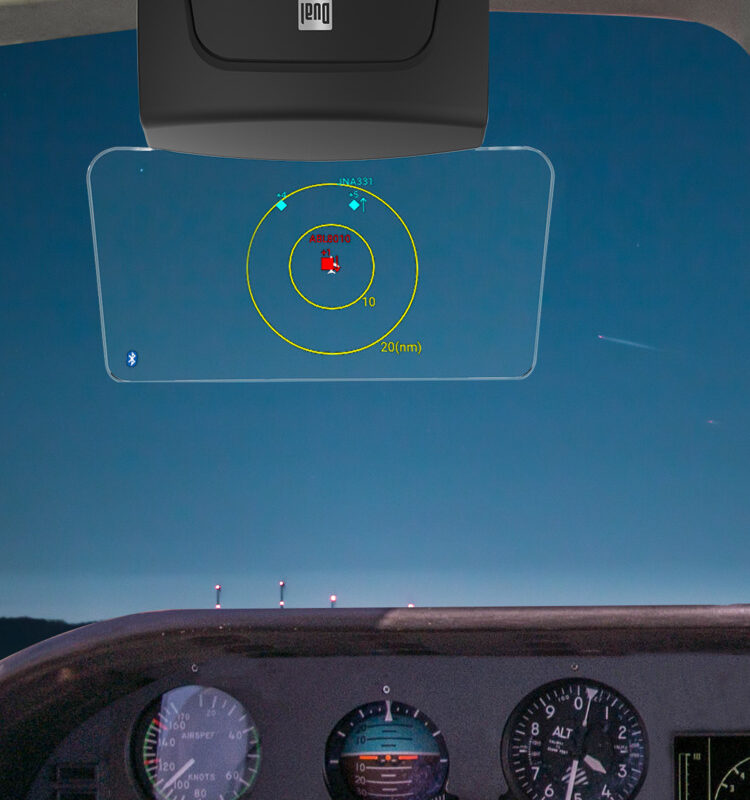

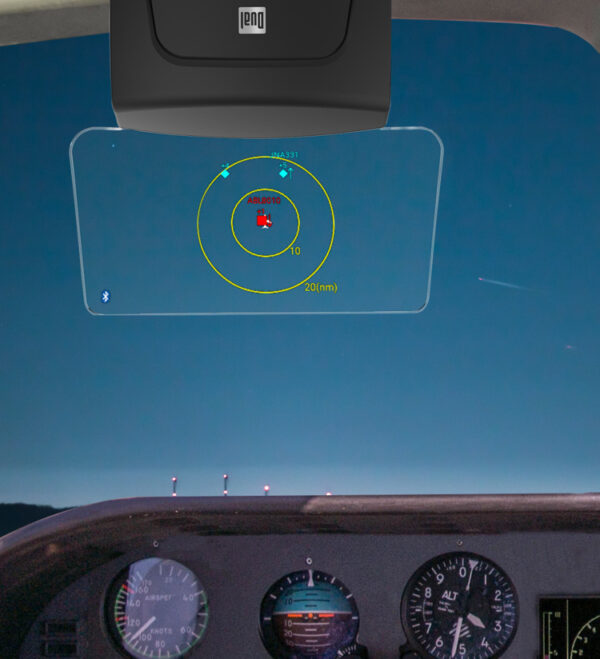

  • Image Invert feature allows use of HUD in ceiling mount position

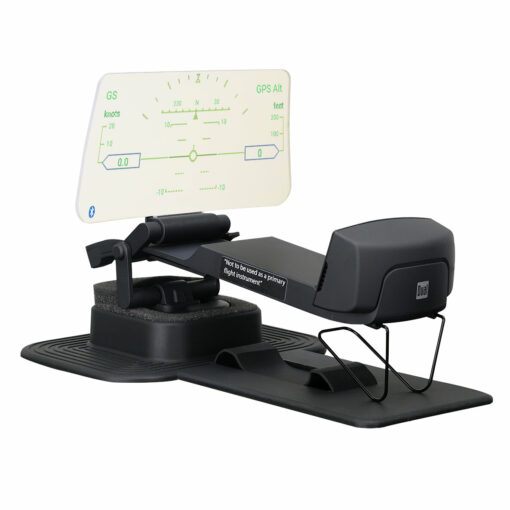

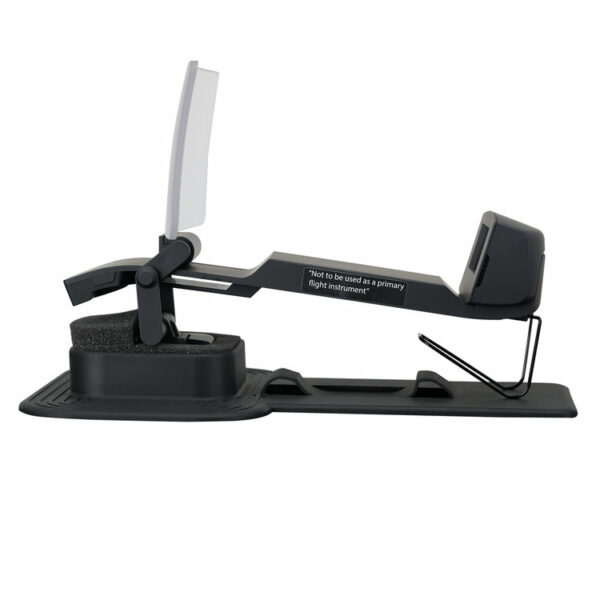

  • Folding screen with adjustable distance & angle
  • Screen optimized for both bright and dim conditions
  • Compact, lightweight, & portable
  • USB adapter and power cable
hud connections

CONNECTIONS

With Dual XGPS ADS-B Receiver

  • XHUD1000 reads data directly from Dual receiver, and displays AHRS & Traffic using HUD’s built-in graphics
  • Most 3rd party EFB apps can be used, including Foreflight
  • Tablet Graphics mode available for iOS & Android mobile devices
  • WiFi connection not required, unless using Tablet Graphics mode
hud connections v2

With Stratus 3 Receiver

  • XHUD1000 reads data directly from Stratus 3, and displays AHRS & Traffic using HUD’s built-in graphics
  • When XHUD1000 is connected to the Stratus 3, most 3rd party EFB apps can be used. However Foreflight cannot be used with Stratus 3 when HUD is connected, unless HUD is in Tablet Graphics mode
  • Tablet Graphics mode only available for iOS mobile devices
dimensions

Dimensions

  • Height: 4.72 in. (120mm)
  • Width: 4.72 in. (120mm)
  • Depth: Adjustable Ranges: 5.9 in. – 7.08 in. (150mm – 180mm)

Features

AHRS & Traffic Modes

The XHUD1000 enhances situational awareness for General Aviation, enabling pilots to view key fight data with their head up and eyes forward. For more information on the XHUD1000, see video. This video demonstrates two of the XHUD1000 display modes: AHRS: Displays altitude, airspeed, attitude, bank angle, and compass heading on a classic HUD graphic for monitoring fights.

Manuals (PDFs)

Quick Start Guide:

* To confirm details of compatibility with other GPS/ADS-B receivers or panel avionics systems, please download the owner’s manual from the link above.
