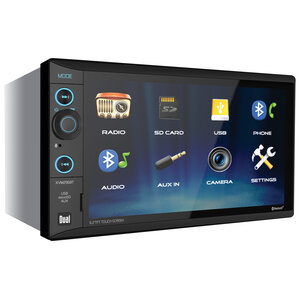

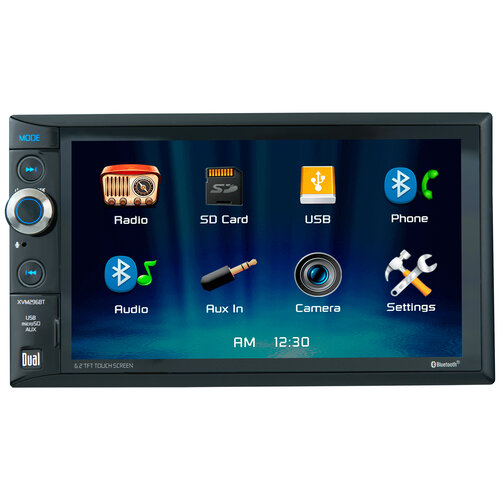

6.2″ AV Media Receiver – XVM296BT

The original XVM296BT.

Authorized Retailer:

SKU: XVM296BT-v1 Categories: ,

bluetooth icon

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

color touch screen icon

6.2″ Full Color Touchscreen

Easily manage and control your AM/FM radio, USB drive, AUX input, microSD card, and sources with Bluetooth® technology by using the large colorful touchscreen. Add an optional rear view camera to see behind you when backing up for safer driving.


High-Power Sound

50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the two pair of preamp outputs to add amplifiers for more volume in your system.



Phone Connectivity


, ,

Amplifier Outputs

Tech Type

Screen Size

Peak Power Output

Bluetooth Features

, ,

Inputs - All

, ,

USB Charge

File Playback

, ,

Card Slot

RCA Outputs

Audio Processing

AM/FM Receiver


  • 6.2″ LED Backlit LCD touchscreen (800p x 480p)
  • Built-in Bluetooth with hands-free calling, music streaming and remote control (HFP, A2DP, AVRCP)
  • AM/FM tuner 30 stations presets (18FM/12AM)
  • Front USB input (1 Amp charging for most phones)
  • microSD card input (support SDHC)
  • Front panel 3.5mm aux input
  • Rear video camera input (RCA)
  • 2 Pairs of preamp outputs (front/rear)
  • 7 EQ presets (Pop, Jazz, Classic, Rock, Beat, Flat & User)
  • Media playback: USB/microSD
  • File formats : FLAC, MP3
  • Supports audio only, no video playback.
  • Digital media unit, will not play CD/DVDs
  • 200 Watts (50 W x 4)

Manuals (PDFs)



  • Fixes volume issues.

Download Firmware Update for XVM296BT

  • Unzip the file
  • Copy all file into the USB thumb drive.
  • Power on the Head unit.
  • Insert the USB thumb drive in USB port
  • “Are you sure” message will pop-up on screen. Press the green check mark to continue.
