XGPS160 – SkyPro GPS Receiver



$179.99

Out of stock

  • Ideal for pilots, race car drivers, and boating
  • This 2nd generation GPS Receiver features even faster signal acquisition
  • 10Hz positioning updates
  • Bluetooth connectivity to up to 5 devices
  • The WAAS receiver simultaneously receives both GPS (USA) and GLONASS (Russia) satellite system signals

SKU: XGPS160 Category:

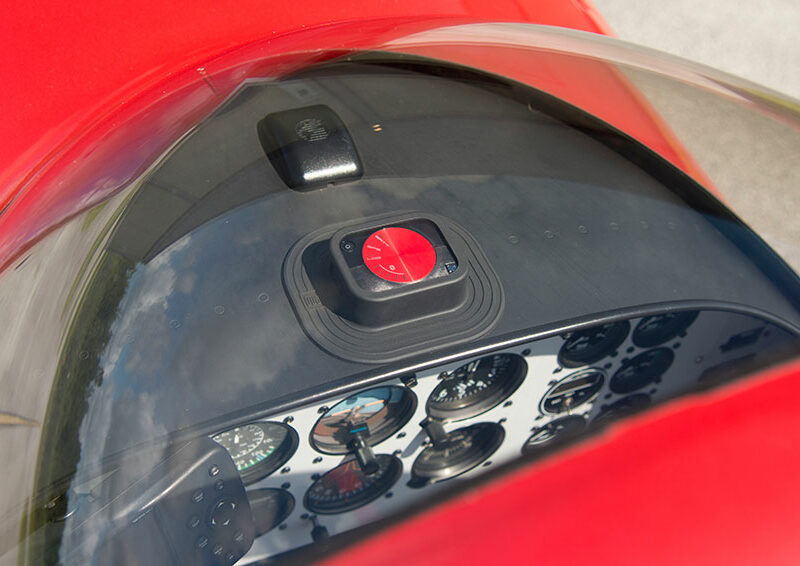

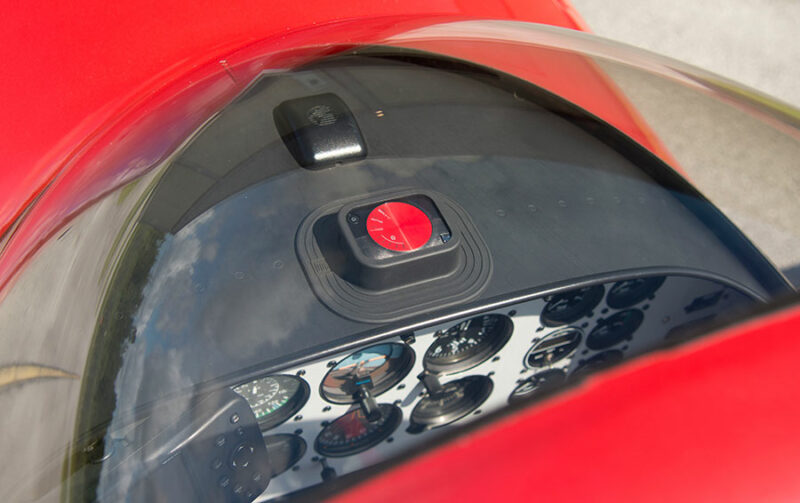

xgps160 through glareshield

The GPS Receiver that Keeps Up

The XGPS160 SkyPro GPS Receiver features fast signal acquisition and 10Hz positioning updates, making it an ideal GPS for pilots, race car drivers and other fast moving applications. The WAAS receiver is compatible with both GPS (USA) and GLONASS (Russia) systems and it connects via Bluetooth to up to 5 Apple or Android devices.

Once paired with your device the GPS Receiver will provide high-accuracy GPS location data to hundreds of app. The XGPS160 will remember the device to which it was previously paired for an easy automatic connection.

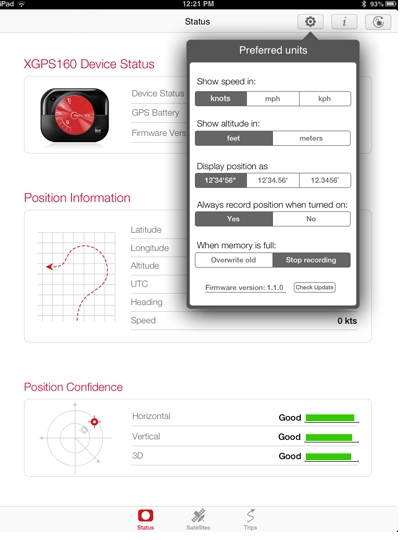

This GPS Receiver also comes with a useful GPS Status Tool app. (Available free on the iTunes App Store). The app allows you to turn on and off the automatic route recording feature, and to export the stored log file information. The Status Tool app also shows detailed information from the GPS Receiver including:

  1. Your location (or whether the device is still determining where you are)
  2. How many satellites the device sees and the signal strength of each satellite
  3. The battery level of the GPS Receiver, and whether or not it is charging
  4. Confirmation the GPS Receiver is successfully connected to your iPad/iPod touch/iPhone

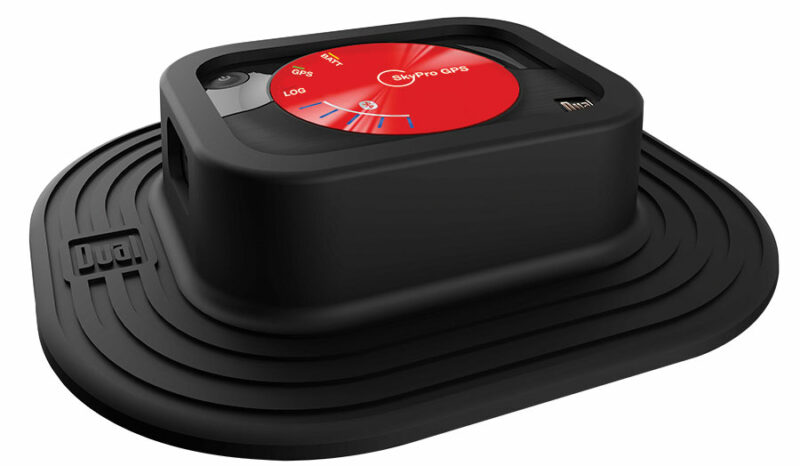

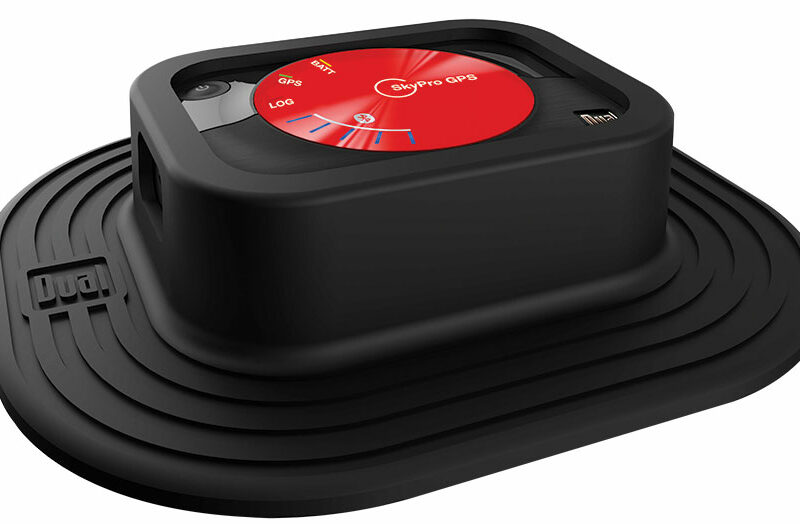

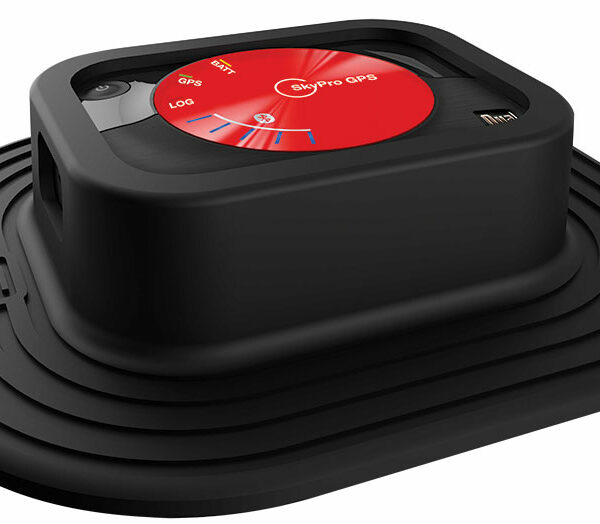

The SkyPro GPS Receiver also includes a non-slip pad for use in a cockpit, car or a boat.

160iphone

Features

  • High-sensitivity WAAS GPS receiver
  • Simultaneous GPS and GLONASS reception
  • Up to 10 position samples per second
  • Wirelessly connects to up to 5 devices via Bluetooth such as Bluetooth-Enabled Smartphones, Tablets and Laptops (Android, Windows and OSX Devices)
  • Automatic route recording
  • Works with most apps that require GPS
  • Built-in rechargeable battery lasts 10 hours
  • USB charging via the included USB cable
  • Includes a non-slip dashboard pad and 12-28VDC charging adapter

GPS/GLONASS

  • GPS and GLONASS supported simultaneously
  • 99 channels
  • SBAS (WAAS, MSAS, EGNOS, GAGAN) supported
  • GPS: L1 1598.0625~1605.375 MHz
  • GLONASS: L1 1598.0625~1605.375 MHz
  • Accuracy: +/-2.5m (CEP)
  • Fast location acquisition times: < 29 secs (warm or cold start)
  • Position updates: up to 10 times per second
  • Maximum speed: 1000 kts / 1150 mph
  • Maximum altitude: 20,000 m / 65,600 ft

Bluetooth

  • CSR engine
  • Version 2.1 + EDR
  • Bluetooth connectivity to up to 5 devices (5 Apple devices, 5 Android devices, etc.)
  • Bluetooth range: 33 ft / 10m (open space)

Internal Battery

  • Full charge lasts for at least 10 hours of continuous use (for 1 device)
  • Recharges in 3 hours
  • Capacity: 1400 mAh
  • Plug in to 12VDC source for continuous use

General

  • Supports both NMEA and Apple protocols
  • Small and light:
    • 2.7″ (70mm) wide x 2.2″ (55mm) tall x 0.8″ (22mm) thick
    • 2.5 ounces / 71 grams
    • Non-slip pad: 4.8″ (122mm) wide x 4.2″ (107mm) tall x 0.9″ (25mm) thick
  • Operating temperature: 14°F – 140°F (-10°C – 60°C)

Included

  • The XGPS160 SkyPro GPS Receiver
  • 12-28V Cigarette Lighter Adapter
  • Mini USB to USB charging cable
  • Non-slip pad
  • Status Tool App (free download from the iTunes App Store)
  • Owner’s manual with warranty information

Manuals(PDFs)

Firmware

Status Tool App:

SDK

Firmware

Downloads

Status Tool App:

SDK

Firmware
