7″ USB Mirroring AV Media Receiver – DM70MIR


  • Mirror your favorite smartphone apps onto your receiver’s screen while parked
  • This Digital media receiver features a 7″ touchscreen
  • Fits most 2 DIN dash openings
warranty information
60 day return policy
free shipping in United States

SKU: DM70MIR Categories: ,

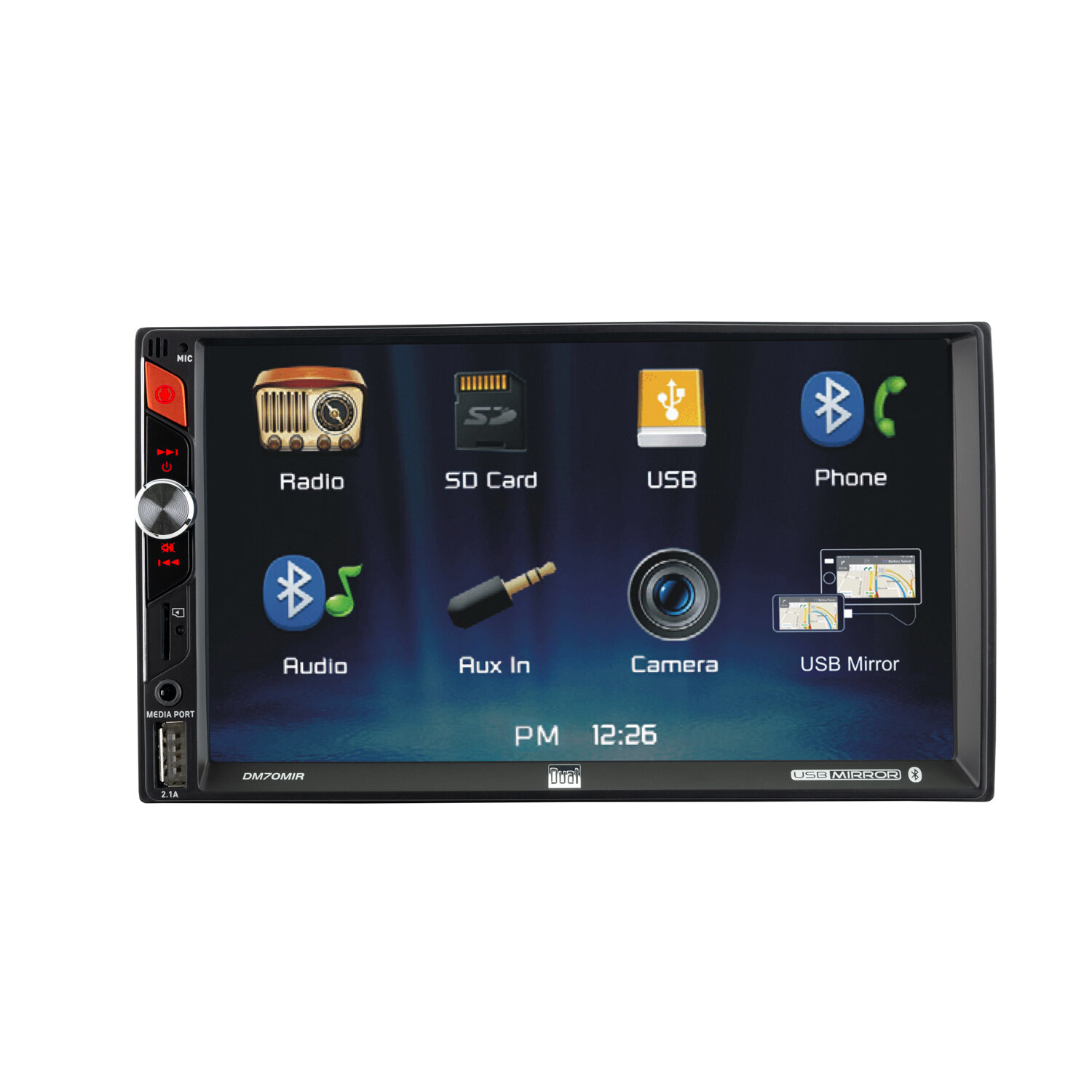

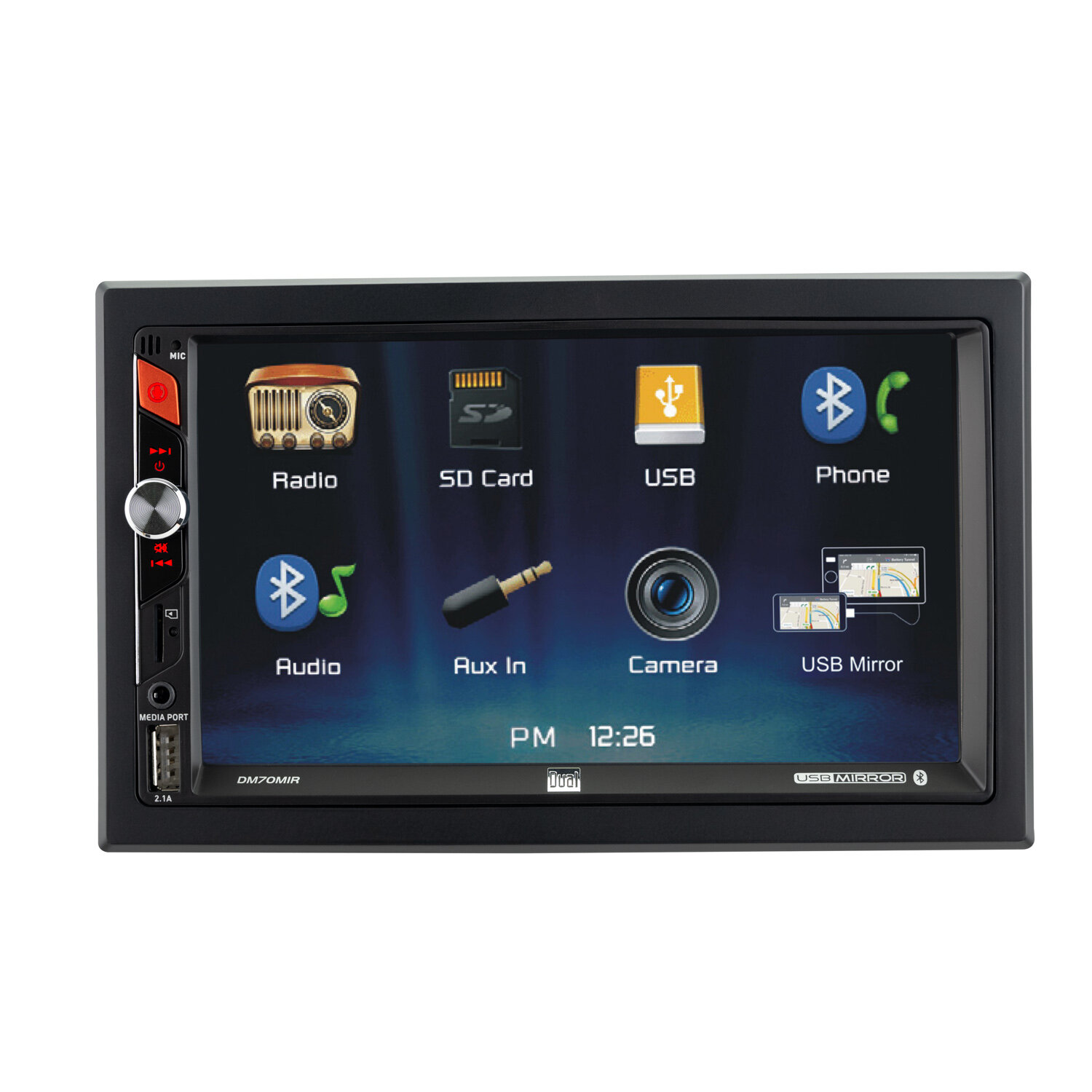

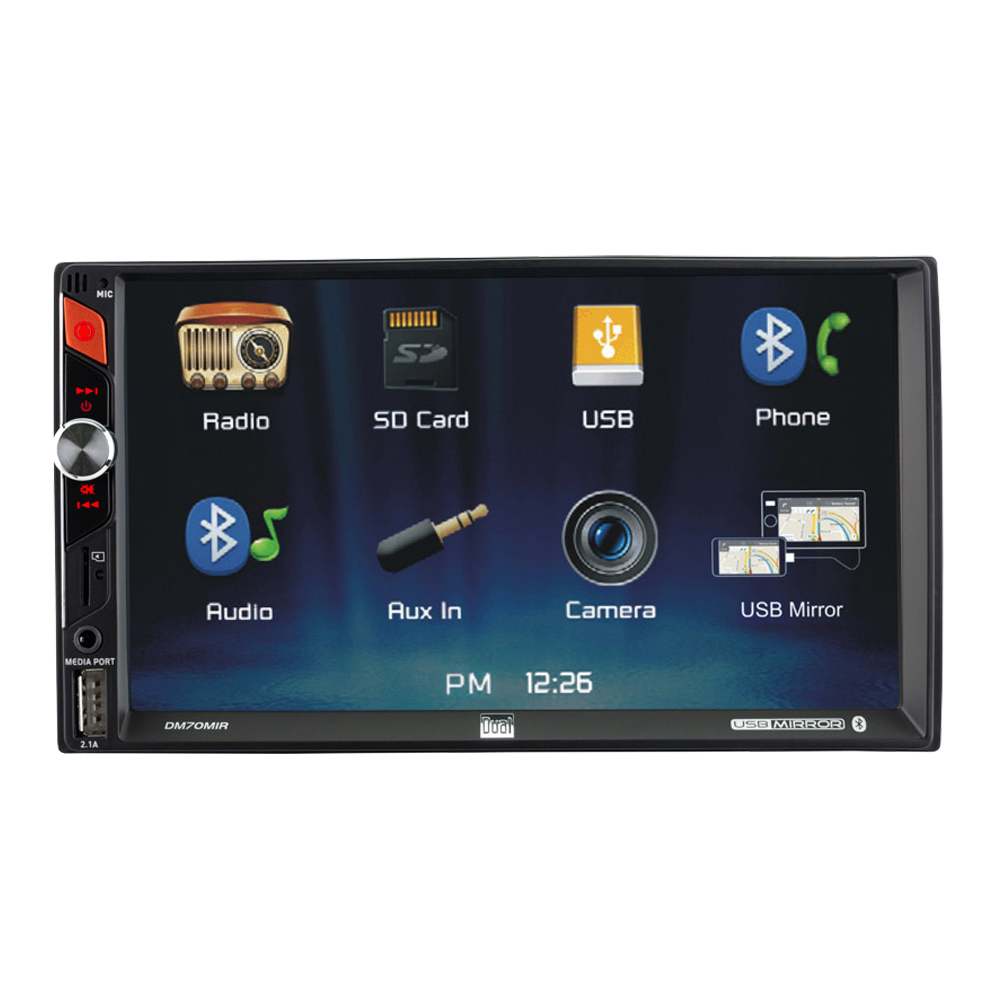

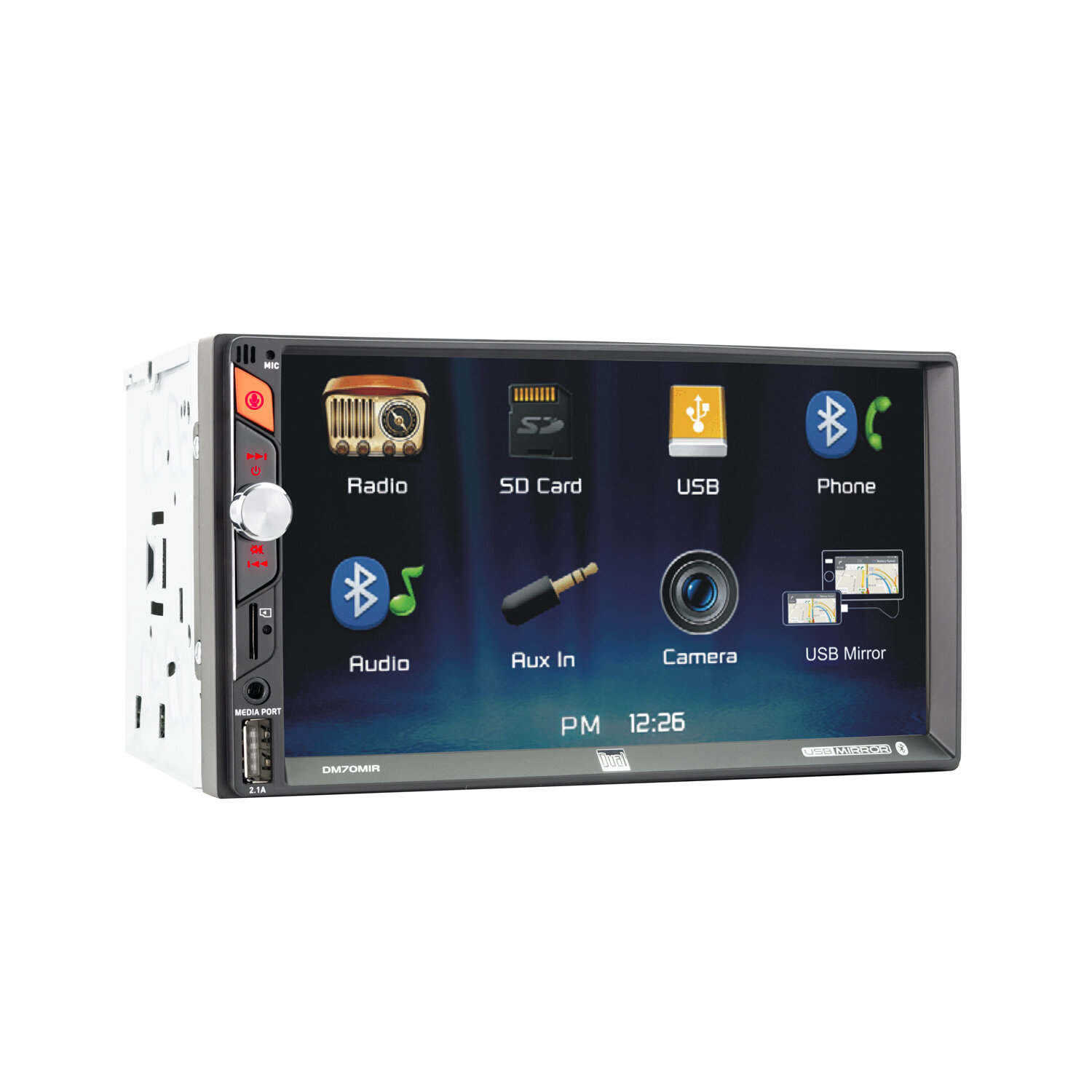

The DM70MIR 7″ Screen Mirroring Media Receiver lets you upgrade your factory radio for improved music streaming. A 7″ vibrant touchscreen levels up menu navigation and shows off your phone apps while parked. Additionally, install an optional backup camera to see behind you while reversing.


Screen Mirroring

Take advantage of the large 7″ screen to check maps, the weather, or your favorite album art during driving breaks. The DM70MIR allows you to mirror the screen of your smartphone onto the receiver’s screen via a USB cable*. Enjoy high-quality picture and accurate mirroring thanks to the built-in digital-to-digital USB converter. *USB connection cable sold separately.

bluetooth icon

Music Streaming & Hands-free Calling

Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your screen mirroring media receiver. Answer calls easily using the touchscreen icons.


iPlug Smart Remote App

Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth.

Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight.

Download iPlug Smart Remote P1


High-Power Sound

The DM70MIR 7″ Screen Mirroring Media Receiver boasts 50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting. Use the 3 pairs of preamp outputs to add amplifiers for more volume in your system.



Phone Connectivity



, , ,

File Playback

, ,

Amplifier Outputs

Steering Wheel Control Compatible

Tech Type

Screen Size

Peak Power Output

Bluetooth Features

, , ,

USB Charge

Card Slot

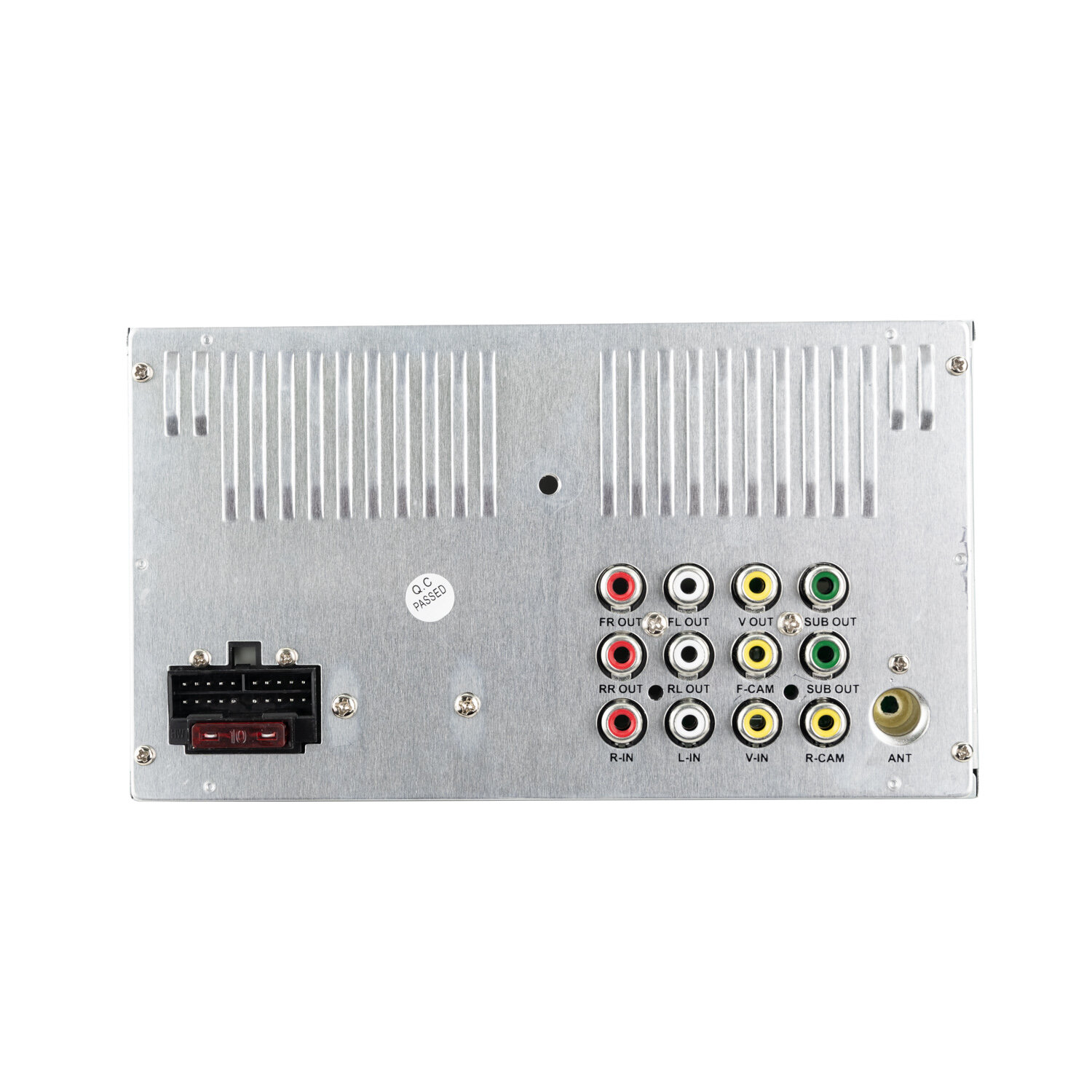

RCA Outputs

Front Panel


Audio Processing

, , ,

Chassis Depth

Wireless Remote

AM/FM Receiver

Manuals (PDFs)

Smart Remote App

iPlug P1 Smart Remote App


If you are having issues with the USB Mirroring feature functioning properly, the below firmware download will fix the issue.

Note: Software is not interchangeable between models. Please do not attempt this update on any other model other than the DM70MIR

Download File:DM70MIR Firmware

How to Update:

  1. Download the firmware file from the link above.
  2. Unzip the downloaded file. (NOTE: To unzip the file, the program WINRAR is required and can be downloaded from this link: https://www.rarlab.com/download.htm)
  3. Copy the S361T.abs file to an empty USB Thumb Drive formatted to FAT32.
  4. With the vehicle Off, insert the USB Thumb Drive with the updated firmware into the CM701MIR USB Port.
  5. Turn the vehicle On , press the Home icon in the top left corner of the screen, and select USB Mirroring from the main screen. You will see the current software version towards the bottom in the middle of the screen (S361TC8HV042VW). The update is performed automatically
  6. When the message PLS reboot! Is displayed, turn the vehicle Off and remove the USB thumb drive. The update is now complete. The updated software version will now read (S361TC8HV043VW).
  7. The radio is now ready to use the USB Mirroring feature
