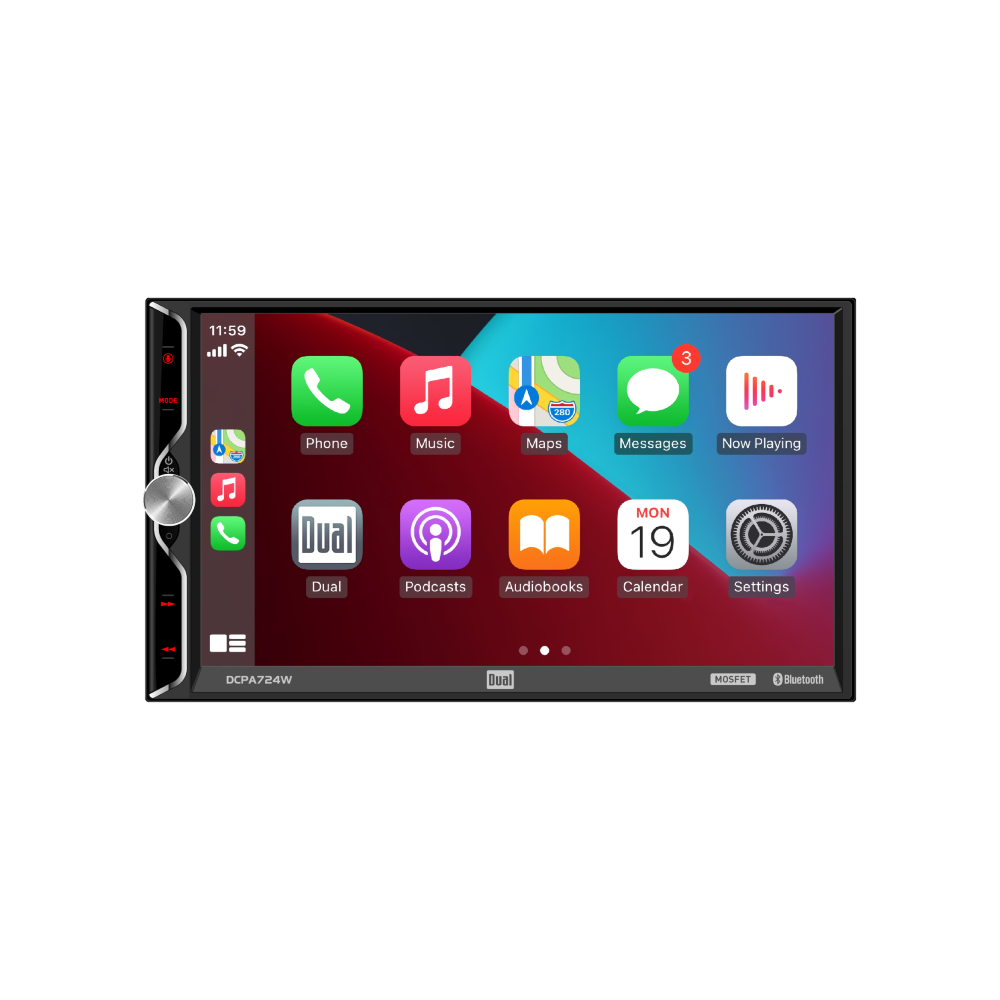

7″ Receiver w/ Wireless Android Auto & Apple Carplay – DCPA724W
- Support for Apple CarPlay and Android Auto
- Rear USB with 2.1A Charging
- Featuring a 7” LED backlit touchscreen
- Built-in Bluetooth
- Fits most Double DIN openings
Authorized Retailer:
*Upgrade to 2-year Warranty by Registering Your Item within 60 Days of Purchase.

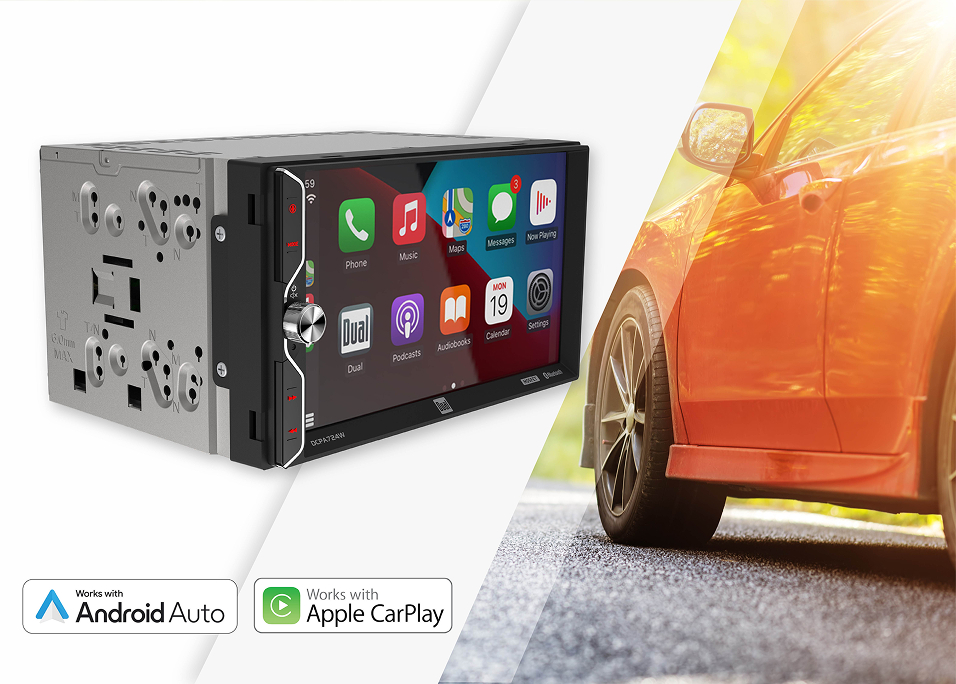

Wireless Apple CarPlay
and Android Auto
Play music, make calls, and check the traffic.
Audio plays via your car’s speakers.
Use Your Phone’s Assistant a dedicated voice activation button summons the virtual assistant on your smartphone.
Additional Features
Amplifier-Ready
Want more volume now or down the road? Use the three pair of preamp outputs to add amplifiers for more volume in your system.
200 Watts Peak Power
50 Watts of peak power built-in for each of your 4 speakers.

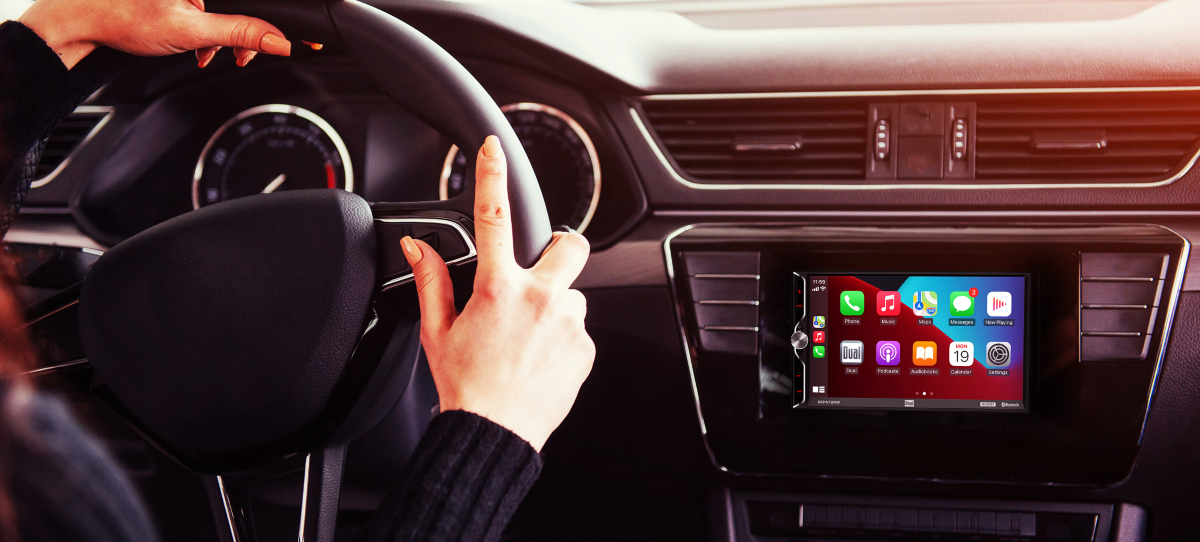

Fits 2 DIN Openings
The receiver is designed to fit in most 4” x 7” double DIN openings.
Not a CD/DVD Player

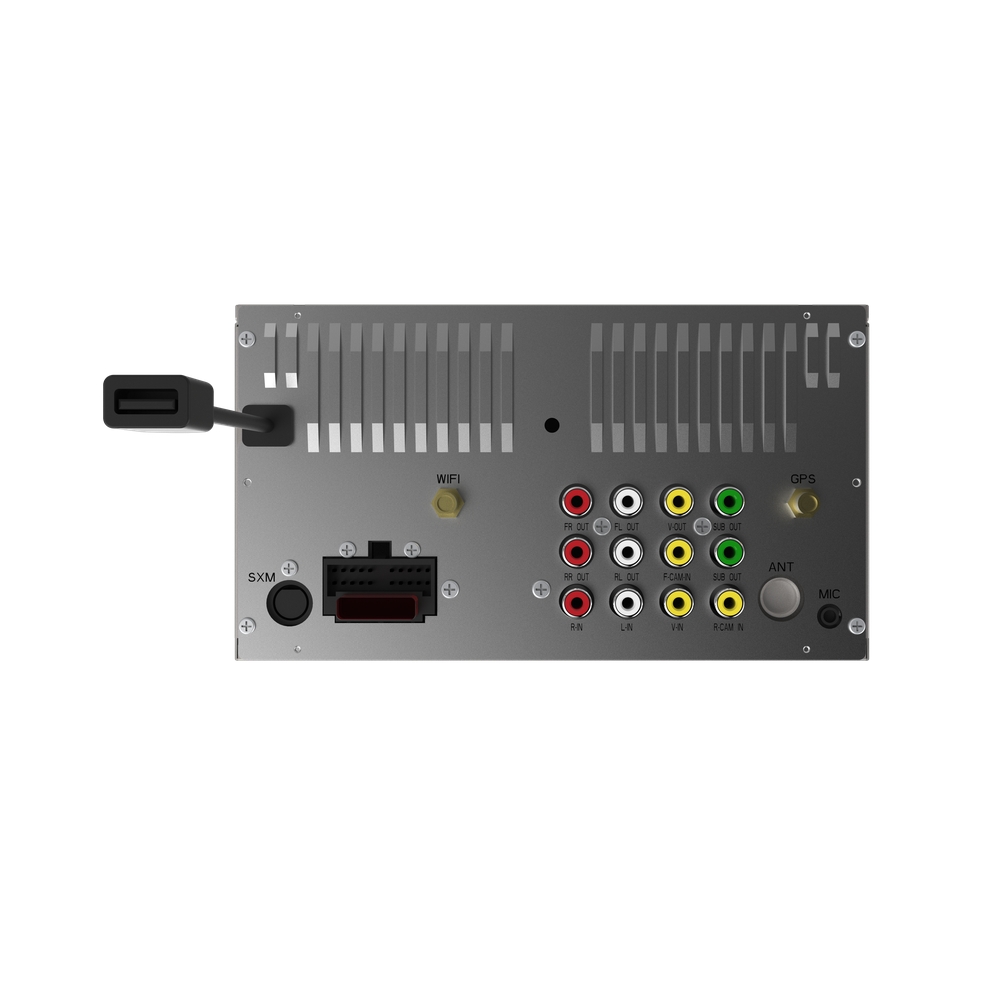

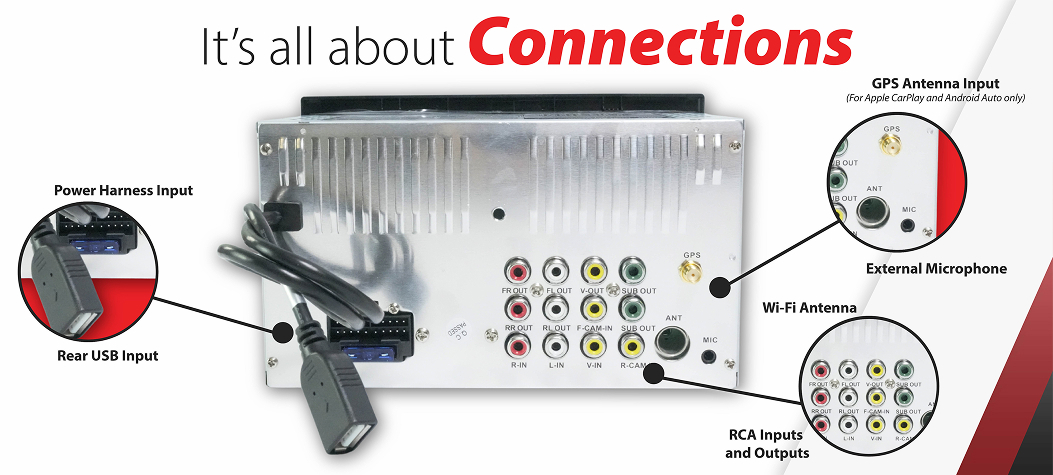

Front and Rear
Camera Inputs
Add a front and rear camera to get an expanded view around your vehicle and eliminate blind spots!
FRONT/BACK
| Stereo Type | AV Receiver |
|---|---|
| Playback | |
| Size | |
| Phone Connectivity | Android Auto, Android Auto Wireless, CarPlay, CarPlay Wireless, Bluetooth |
| Wireless | |
| Steering Wheel Control Compatible | |
| Screen Size | |
| Peak Power Output | |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |
| Inputs | |
| USB Charge | |
| File Playback | |
| Preamp Outputs | |
| Illumination | |
| Audio Processing | 10 Band EQ, 8 EQ Presets |
| AM/FM Receiver | 30 Station presets (18FM/12AM), RDS Tuner |
| Wallpapers |
Firmware Update Instructions
A Note about Firmware Update via USB Devices
We recommend following the guidelines below for your USB drive:
- Use an 8GB or 16GB USB drive from a common USB drive manufacturer.
- Some recommended brands include:
- SanDisk®
- Kingston®
- PNY®
- Verbatim®
- Corsair®
- The drive should support USB 2.0 or faster transfer speeds. Older version USB 1.0 drives are not compatible.
- Format the drive using FAT32 as the file system on your laptop or computer before copying the software update to the USB drive.
This update addresses the following:
- Corrects Sub Outputs not working after CarPlay phone call.
Note: Software is not interchangeable between models. This firmware update is intended only for the DCPA724W. Please do not attempt this update on any other model.
How to Update:
- Download the firmware files below.
- Unzip the downloaded file. Note: If unable to unzip the files, the program WINRAR is required and can be downloaded from this link: WINRAR Download
- Copy the
ISPBOOOT.BINfile and the Update Folder to an empty USB Thumb Drive formatted to FAT32. - Insert the USB Thumb Drive with Update Firmware into the DCPA724W Android Auto/Apple CarPlay Port.
- Navigate to System Settings and scroll till you get to the About button.
- Press the About button and you will see Update.
- Press Update to begin the firmware upgrade.
- This is a two part update. After the first update is complete the radio's screen will turn black for 10 seconds and then the second part will start automatically. Once finished the radio will restart.
- Remove the USB stick, the update is now complete.
Download Firmware Zipped File: DCPA724W Firmware Download
To check that the update was done correctly, go to System Settings and press About. If you see the following information, the update was done correctly for model DCPA724W.
-MCU: PY-DUAL-260310
-SOC: DCPA724W-260730-17
-Hardware: 2.0.0
